P9K121-K00D3

Active

Rosenberger

HEADER -40℃~+85℃ 90GHZ COAXIAL CONNECTORS (RF) ROHS

Search across all available documentation for this part.

Active

Rosenberger

HEADER -40℃~+85℃ 90GHZ COAXIAL CONNECTORS (RF) ROHS

Technical Specifications

Parameters and characteristics for this part

HEADER -40℃~+85℃ 90GHZ COAXIAL CONNECTORS (RF) ROHS

Part	Mating Cycles	Mounting Type	Center Gender	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Center Contact Material	Adapter Series	Convert From (Adapter End)	Conversion Type	Frequency - Max [Max]	Dielectric Material	Style	Convert To (Adapter End)	Body Finish	Body Material	Adapter Type
Rosenberger P9K121-K00D3	3000	Free Hanging (In-Line)	Female to Female	85 °C	-40 °C	Gold	Beryllium Copper	RPC-1.35 to RPC-1.35	1.35mm Jack, Female Socket	Same Series	90 GHz	Polyetheretherketone (PEEK)	Straight	1.35mm Jack, Female Socket	Gold	Beryllium Copper	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

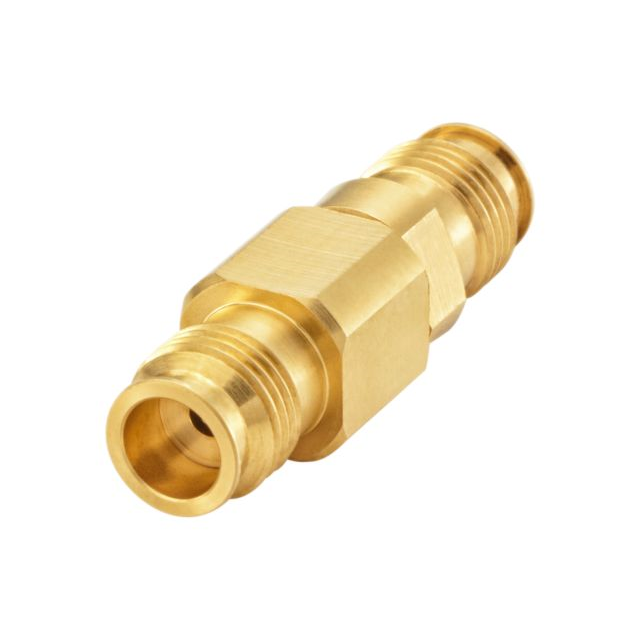

Adapter Coaxial Connector 1.35mm Jack, Female Socket To 1.35mm Jack, Female Socket
