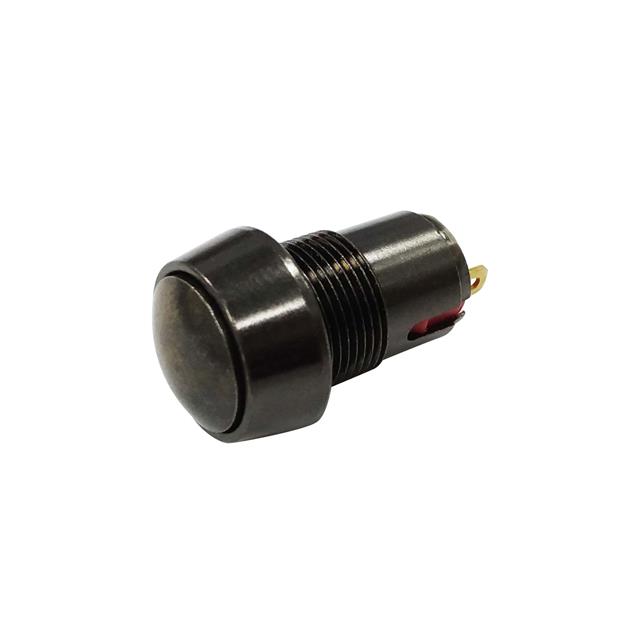

SW-PB7-04MB4WARM
ActiveAdam Tech
LOW PROFILE ANTI-VANDAL PUSHBUTT
Deep-Dive with AI
Search across all available documentation for this part.
SW-PB7-04MB4WARM
ActiveAdam Tech
LOW PROFILE ANTI-VANDAL PUSHBUTT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-PB7-04MB4WARM |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Domed, Round, Button |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA, 2 A |
| Electrical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 12.1 mm |
| Switch Function | Off-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Anti-Vandal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.05 | |
| 10 | $ 17.30 | |||
| 25 | $ 16.31 | |||
| 50 | $ 15.60 | |||
| 100 | $ 14.92 | |||
| 250 | $ 14.06 | |||
| 450 | $ 13.54 | |||
Description
General part information
SW-PB7-04MB4WARM
Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
