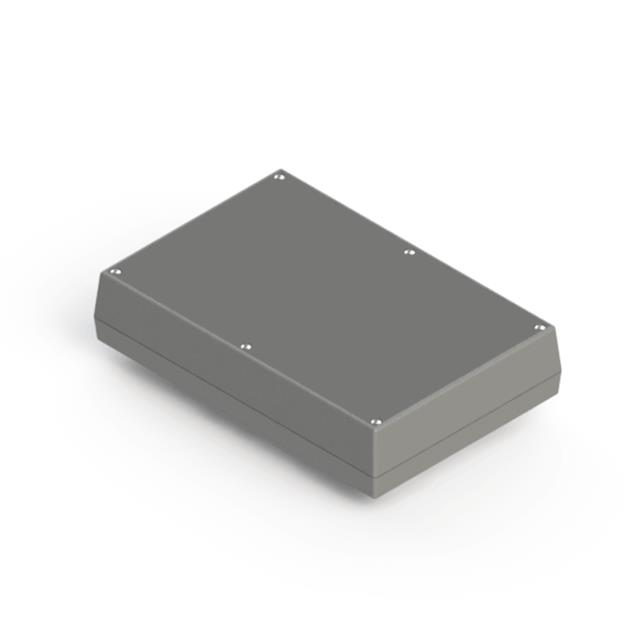

Specification	192RI,GY

Area (L x W)	60.2 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports, Front Access
Height	2 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	9.5 in
Size / Dimension Width	6.34 in
Thickness	0.1 in
Weight	0.711 lb

192R Series

Part	Weight	Thickness	Size / Dimension Length	Size / Dimension Width	Height	Material Flammability Rating	Design	Material	Container Type	Features	Ratings	Color	Area (L x W)
Serpac 192R,BK	0.711 lb	0.1 in	9.5 in	6.34 in	2 in	UL94 HB	Hand Held Split Sides	ABS Plastic	Box	Front Access PCB Supports	IP40 NEMA 1	Black	60.2 in²
Serpac 192RI,GY	0.711 lb	0.1 in	9.5 in	6.34 in	2 in	UL94 HB	Hand Held Split Sides	ABS Plastic	Box	Front Access PCB Supports	IP40 NEMA 1	Gray	60.2 in²
Serpac 192R,GY	0.711 lb	0.1 in	9.5 in	6.34 in	2 in	UL94 HB	Hand Held Split Sides	ABS Plastic	Box	Front Access PCB Supports	IP40 NEMA 1	Gray	60.2 in²
Serpac 192RI,BK	0.711 lb	0.1 in	9.5 in	6.34 in	2 in	UL94 HB	Hand Held Split Sides	ABS Plastic	Box	Front Access PCB Supports	IP40 NEMA 1	Black	60.2 in²
Serpac 192RI,AL	0.711 lb	0.1 in	9.5 in	6.34 in	2 in	UL94 HB	Hand Held Split Sides	ABS Plastic	Box	Front Access PCB Supports	IP40 NEMA 1	Almond	60.2 in²
Serpac 192R,AL	0.711 lb	0.1 in	9.5 in	6.34 in	2 in	UL94 HB	Hand Held Split Sides	ABS Plastic	Box	Front Access PCB Supports	IP40 NEMA 1	Almond	60.2 in²
