1056336-1

Active

TE Connectivity AMP Connectors

CONN ADAPT PLUG-PLUG OSM 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT PLUG-PLUG OSM 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1056336-1

Adapter Series	OSM to OSM
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	27 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 40.39

CONN ADAPT PLUG-PLUG OSM 50 OHM

Part	Mounting Type	Convert To (Adapter End)	Frequency - Max [Max]	Center Contact Material	Body Material	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender	Dielectric Material	Adapter Series	Impedance	Convert From (Adapter End)	Center Contact Plating	Conversion Type	Style	Mating Cycles
TE Connectivity AMP Connectors 1056336-1	Free Hanging (In-Line)	Male Pin, SMA Plug	27 GHz	Beryllium Copper	Stainless Steel	Plug to Plug	-65 ░C	165 °C	Male to Male	Polytetrafluoroethylene (PTFE)	OSM to OSM	50 Ohms	SMA Plug, Male Pin	Gold	Same Series	Straight	500

General part information

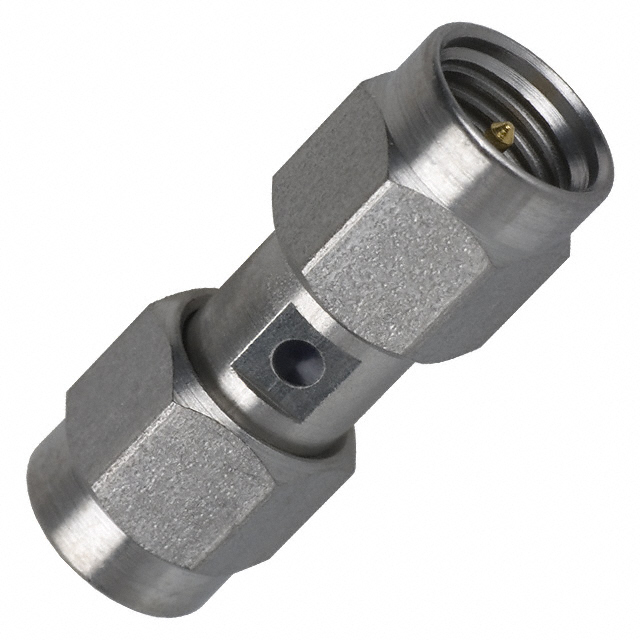

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
