307-017-547-168
ActiveEDAC Inc.

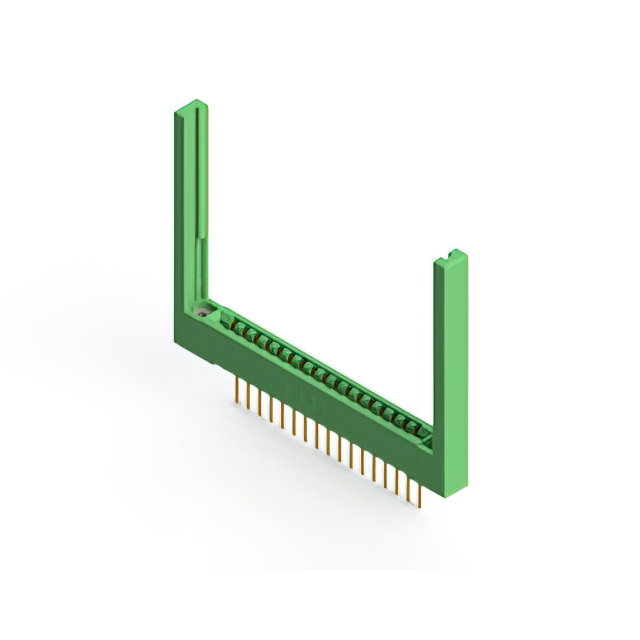

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 17 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
307-017-547-168
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 17 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-017-547-168 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
307-017 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness | Contact Finish Thickness | Features | Termination Rows | Flange Feature | Material - Insulation | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Pitch [x] | Pitch [x] | Contact Type | Read Out | Number of Rows | Gender | Mounting Type | Contact Material | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Solder | 10 Áin | 0.25 Ám | Card Guides | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Single | 1 | Female | Through Hole Right Angle | Copper Alloy | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | Wire Wrap | 10 Áin | 0.25 Ám | Card Guides | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Single | 1 | Female | Through Hole | Copper Alloy | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | Wire Wrap | 10 Áin | 0.25 Ám | 1 | Floating Bobbin Flush Mount | Polyester Thermoplastic | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Dual | 2 | Female | Through Hole Right Angle | Copper Alloy | Gold | 0.116 in | 2.95 mm | 34 | |
EDAC Inc. | -40 °C | 105 ░C | Solder | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Single | 1 | Female | Through Hole | Copper Alloy | Tin | |||||||
EDAC Inc. | -40 °C | 105 ░C | Wire Wrap | 1 | Floating Bobbin Flush Mount | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Single | 1 | Female | Through Hole | Copper Alloy | Tin | 0.116 in | 2.95 mm | ||||
EDAC Inc. | -40 °C | 105 ░C | Solder | 1 | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Single | 1 | Female | Through Hole | Copper Alloy | Tin | 0.128 " | 3.25 mm | ||||
EDAC Inc. | -40 °C | 105 ░C | Solder | 1 | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Single | 1 | Female | Through Hole | Copper Alloy | Tin | ||||||
EDAC Inc. | -40 °C | 105 ░C | Solder | 10 Áin | 0.25 Ám | 1 | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Single | 1 | Female | Through Hole | Copper Alloy | Gold | 0.156 in | 3.96 mm | ||
EDAC Inc. | -40 °C | 105 ░C | Wire Wrap | 10 Áin | 0.25 Ám | Card Guides | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Single | 1 | Female | Through Hole | Copper Alloy | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1 | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | Semi Bellows | Dual | 2 | Female | Through Hole | Copper Alloy | Gold | 0.128 " | 3.25 mm | 34 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-017 Series
17 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
