Description

General part information

643814 Series

The 3-643814-2 is a 2-position 1-row Wire-to-Post Closed-end Receptacle with socket type tin-plated copper alloy contacts and standard glass-filled nylon housing. The strain relief IDC connector has nickel pated underplate, locking lance contact retention, locking ramp mating retention and polarization mating alignment. It is suitable for use with the MTA-100 series header.

Technical Specifications

Parameters and characteristics for this part

Specification	3-643814-2

Cable Termination	IDC
Color	White
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	80 µin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Closed End
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Pitch	0.1 in
Wire Gauge	24 AWG
Wire Type	Ribbon Cable, Discrete

643814 Series

Part	Features	Cable Termination	Pitch	Wire Type	Wire Gauge	Mounting Type	Connector Type	Number of Rows	Contact Finish	Color	Contact Type	Number of Positions	Fastening Type	Contact Finish Thickness
TE Connectivity AMP Connectors 1-643814-4	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin-Lead	White	Female Socket	14	Locking Ramp	80 µin
TE Connectivity AMP Connectors 4-643814-7	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin	White	Female Socket	17	Locking Ramp	80 µin

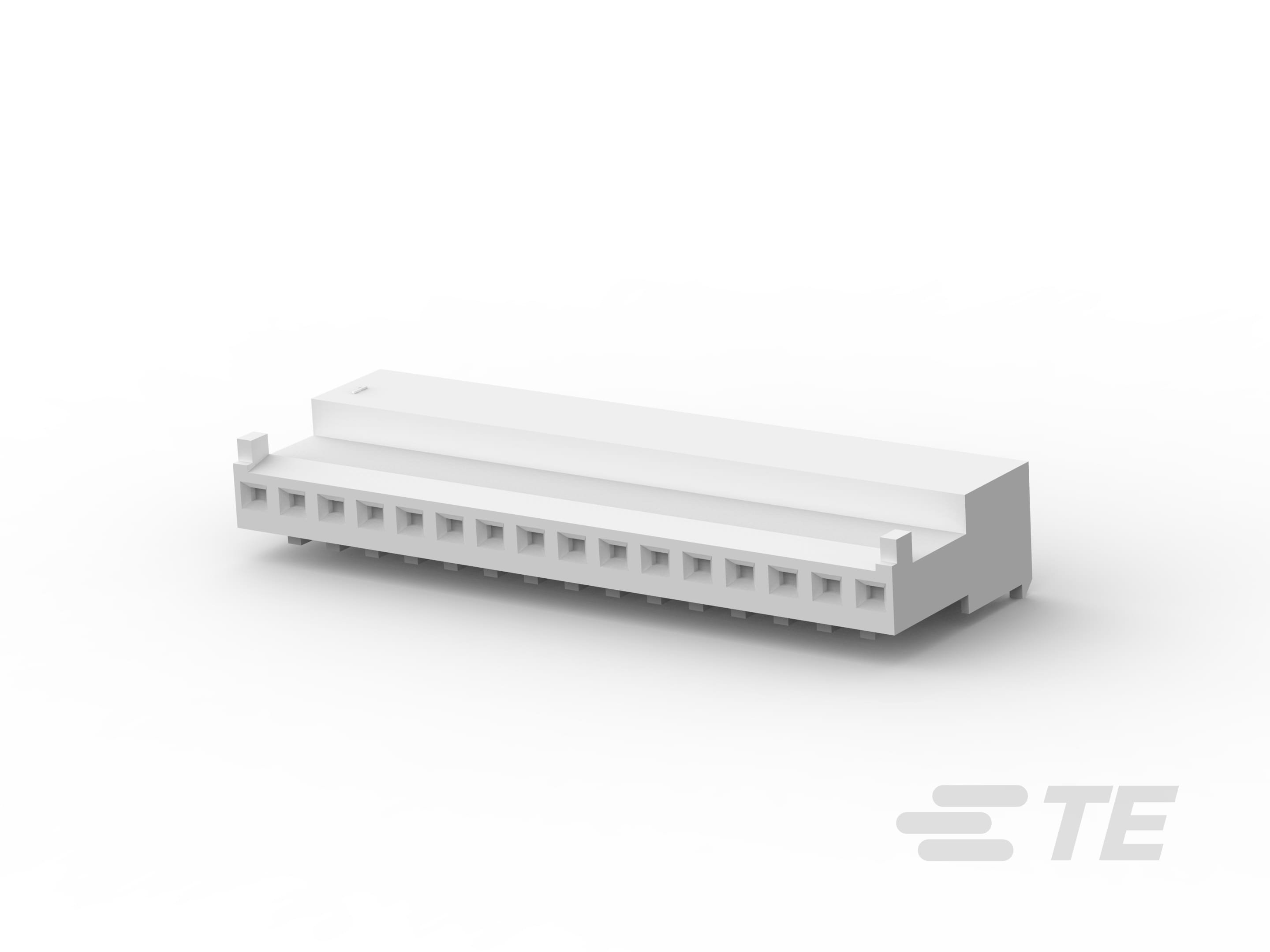

TE Connectivity AMP Connectors 4-643814-6	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin	White	Female Socket	16	Locking Ramp	80 µin

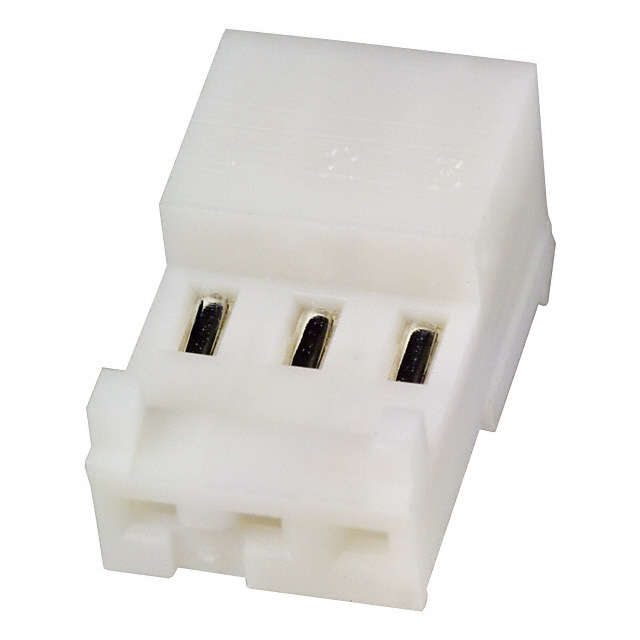

TE Connectivity AMP Connectors 643814-3	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin-Lead	White	Female Socket	3	Locking Ramp	80 µin
TE Connectivity AMP Connectors 3-643814-2	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin	White	Female Socket	2	Locking Ramp	80 µin
TE Connectivity AMP Connectors 4-643814-2	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin	White	Female Socket	12	Locking Ramp	80 µin
TE Connectivity AMP Connectors 4-643814-8	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin	White	Female Socket	18	Locking Ramp	80 µin
TE Connectivity AMP Connectors 3-643814-6	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin	White	Female Socket	6	Locking Ramp	80 µin

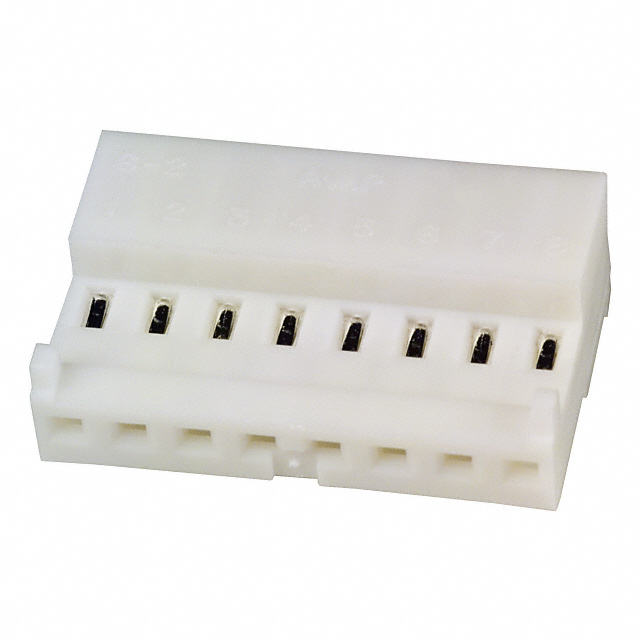

TE Connectivity AMP Connectors 643814-8	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin-Lead	White	Female Socket	8	Locking Ramp	80 µin
TE Connectivity AMP Connectors 3-643814-2	Closed End	IDC	0.1 in	Discrete Ribbon Cable	24 AWG	Free Hanging (In-Line) Right Angle	Receptacle	1	Tin	White	Female Socket	2	Locking Ramp	80 µin
