337-050-523-878
ActiveEDAC Inc.

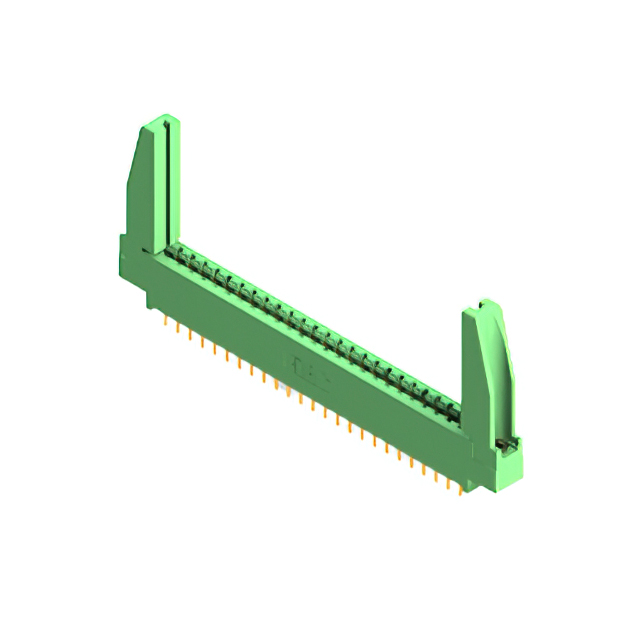

CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-050-523-878 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
337-050 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Mounting Type | Read Out | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions | Gender | Termination | Material - Insulation | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Positions/Bay/Row [custom] | Card Type | Termination Rows | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Board Edge Straddle Mount | Dual | Copper Alloy | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Gold | 0.156 in | 3.96 mm | 50 | Female | Solder Eyelet(s) | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | Card Extender | 25 | Non Specified - Dual Edge | 2 | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole | Dual | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Gold | 0.156 in | 3.96 mm | 50 | Female | Wire Wrap | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 25 | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole | Dual | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Gold | 0.156 in | 3.96 mm | 50 | Female | Solder | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 25 | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole Right Angle | Dual | Copper Alloy | Gold | 0.156 in | 3.96 mm | 50 | Female | Wire Wrap | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 25 | Non Specified - Dual Edge | 2 | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole | Dual | Copper Alloy | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Gold | 0.156 in | 3.96 mm | 50 | Female | Wire Wrap | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 25 | Non Specified - Dual Edge | 2 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole | Dual | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.156 in | 3.96 mm | 50 | Female | Wire Wrap | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 25 | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole | Dual | Copper Alloy | Side Mount Opening Unthreaded | Gold | 0.156 in | 3.96 mm | 50 | Female | Wire Wrap | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 25 | Non Specified - Dual Edge | 2 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole | Dual | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Gold | 0.156 in | 3.96 mm | 50 | Female | Wire Wrap | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 25 | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole | Dual | Copper Alloy | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Gold | 0.156 in | 3.96 mm | 50 | Female | Solder | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | 25 | Non Specified - Dual Edge | 2 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Cantilever | Through Hole | Dual | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Gold | 0.156 in | 3.96 mm | 50 | Female | Solder | Polyester Thermoplastic | 2 | 10 Áin | 0.25 Ám | Card Guides | 25 | Non Specified - Dual Edge | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.96 | |
Description
General part information
337-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
