Q-2G038000H0.5M

Active

Amphenol Custom Cable

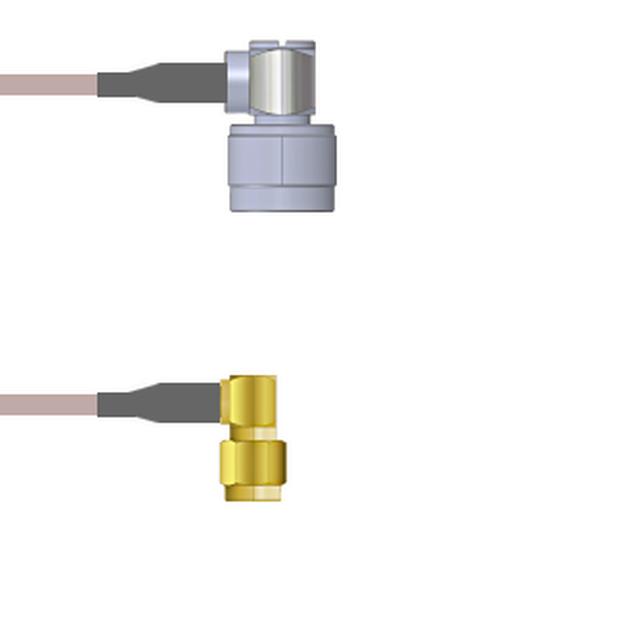

CBL ASSY SMA-NTYPE PLG-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2G038000H0.5M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLG-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2G038000H0.5M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2G0380 Series

Part	Features	Overall Impedance	Frequency - Max [Max]	1st Contact Gender	2nd Contact Gender	Length	Length	Style	2nd Connector	1st Connector Mounting Type	1st Connector	Cable Type	Color	2nd Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2G038000H036i	Shielded	50 Ohms	11 GHz	Male	Male	91.44 cm	36 in	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2G038000H072i	Shielded	50 Ohms	11 GHz	Male	Male	1.8 m	72 in	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-2G038000H009i	Shielded	50 Ohms	11 GHz	Male	Male	228.6 mm	9 "	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2G038000H0.5M	Shielded	50 Ohms	11 GHz	Male	Male	50 cm	19.69 "	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2G038000H.25M	Shielded	50 Ohms	11 GHz	Male	Male			SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)		9.843 "	250 mm
Amphenol Custom Cable Q-2G038000H2.5M	Shielded	50 Ohms	11 GHz	Male	Male	2.5 m	98.4 in	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-2G038000H108i	Shielded	50 Ohms	11 GHz	Male	Male	2.7 m	108 in	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)	9 ft
Amphenol Custom Cable Q-2G038000H1.5M	Shielded	50 Ohms	11 GHz	Male	Male	1.5 m	59.1 in	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-2G038000H024i	Shielded	50 Ohms	11 GHz	Male	Male	609.6 mm	24 "	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2G038000H002M	Shielded	50 Ohms	11 GHz	Male	Male	2 m	78.7 in	SMA to N-Type	N-Type Plug Right Angle	Free Hanging (In-Line)	Right Angle SMA Plug	RG-142	Copper	Free Hanging (In-Line)	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 187.23
		25	$ 183.61
		50	$ 179.98
		100	$ 176.35
		250	$ 172.73

Description

General part information

Q-2G0380 Series

Cable Assembly Coaxial SMA to N-Type RG-142 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
