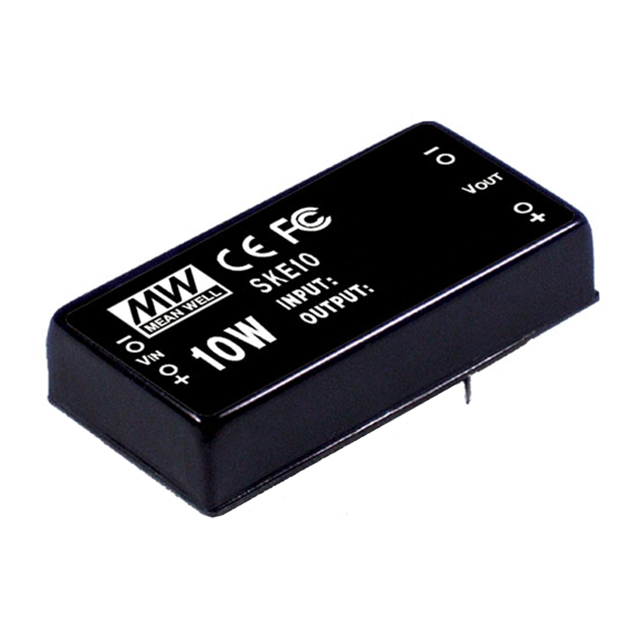

SKE10A-05
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKE10A-05
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKE10A-05 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 78 % |
| Features | OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 11.3 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.68 | |
Description
General part information
SKE10 Series
Isolated Module DC DC Converter 1 Output 5V 2A 9V - 18V Input
Documents
Technical documentation and resources
