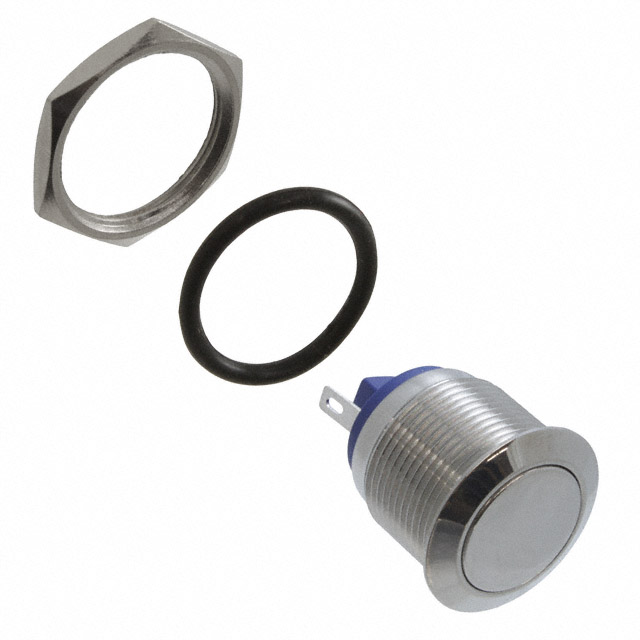

PV1F240SS

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Deep-Dive with AI

Search across all available documentation for this part.

PV1F240SS

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV1F240SS

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal
Voltage Rating - DC	48 V

PV1F640 Series

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Actuator Type	Termination Style	Termination Style	Termination Style	Mechanical Life	Panel Cutout Dimensions [diameter]	Mounting Type	Type	Switch Function	Electrical Life	Actuator Marking
E-Switch PV1F240SS	2 A	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPST-NO	48 V	Silver	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	19 mm	Panel Mount Front	Anti-Vandal	Off-Mom	200000 Cycles	No Marking
E-Switch PV1F640BBG	2 A	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPST-NO	48 V	Silver	Button Flush Round		Screw Terminal		1000000 Cycles	19 mm	Panel Mount Front	Anti-Vandal	Off-Mom	200000 Cycles	No Marking
E-Switch PV1S240BB	2 A	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPST-NO	48 V	Silver	Button Domed Round	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	19 mm	Panel Mount Front	Anti-Vandal	Off-Mom	200000 Cycles	No Marking
E-Switch PV1F640BBG-M06	2 A	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPST-NO	48 V	Silver	Button Flush Round		Screw Terminal		1000000 Cycles	19 mm	Panel Mount Front	Anti-Vandal	Off-Mom	200000 Cycles	Arrow
E-Switch PV1H240BB	2 A	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPST-NO	48 V	Silver	Button Round	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	19 mm	Panel Mount Front	Anti-Vandal	Off-Mom	200000 Cycles	No Marking
E-Switch PV1F240SS-M01	2 A	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPST-NO	48 V	Silver	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	19 mm	Panel Mount Front	Anti-Vandal	Off-Mom	200000 Cycles	Power Symbol
E-Switch PV1H240SS	2 A	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPST-NO	48 V	Silver	Button Round	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	19 mm	Panel Mount Front	Anti-Vandal	Off-Mom	200000 Cycles	No Marking
E-Switch PV1F240BBG	2 A	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPST-NO	48 V	Silver	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	19 mm	Panel Mount Front	Anti-Vandal	Off-Mom	200000 Cycles	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.96
		10	$ 8.05
		25	$ 7.68
		50	$ 7.35
		100	$ 7.06
		250	$ 6.69
		500	$ 6.19
		1000	$ 5.90

Description

General part information

PV1F640 Series

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front

Documents

Technical documentation and resources

No documents available
