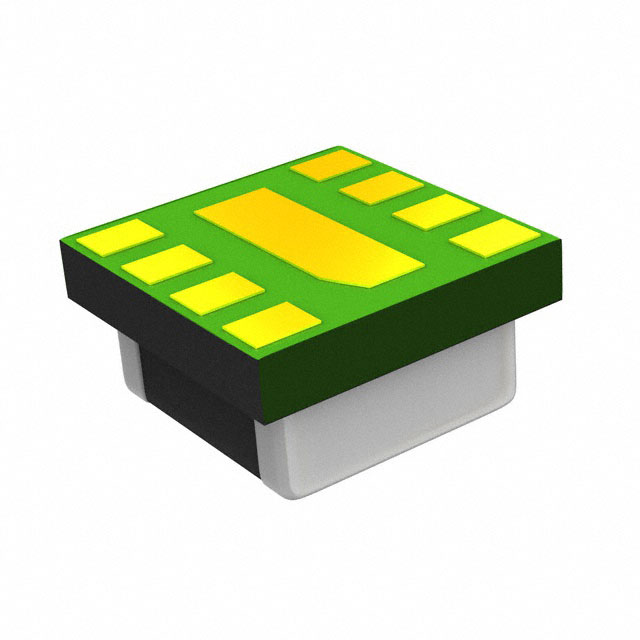

TPS82084SILT

Active

Texas Instruments

2-A, HIGH-EFFICIENCY STEP-DOWN CONVERTER MODULE WITH INTEGRATED INDUCTOR 8-USIP -40 TO 125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Extending the Soft Start Time Without a Soft Start Pin (Rev. B)+18

TPS82084SILT

Active

Texas Instruments

2-A, HIGH-EFFICIENCY STEP-DOWN CONVERTER MODULE WITH INTEGRATED INDUCTOR 8-USIP -40 TO 125

Deep-Dive with AI

DocumentsDatasheet Extending the Soft Start Time Without a Soft Start Pin (Rev. B)+18

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPS82084SILT	TPS82084 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	2 A	2 A
Features	Adjustable Output	Adjustable Output
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-LDFN Exposed Pad	8-LDFN Exposed Pad
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [x]	0.12 in	0.12 in
Size / Dimension [y]	0.11 in	0.11 in
Size / Dimension [y]	2.8 mm	2.8 mm
Size / Dimension [z]	1.3 mm	1.3 mm
Size / Dimension [z]	0.05 "	0.05 "
Supplier Device Package	8-uSIP (3x2.8)	8-uSIP (3x2.8)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	6 V	6 V
Voltage - Input (Min) [Min]	2.5 V	2.5 V
Voltage - Output 1 [Max]	6 V	6 V
Voltage - Output 1 [Min]	0.8 V	0.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Bristol Electronics	N/A	1	$ 4.47
		1	$ 4.50
		2	$ 3.36
		2	$ 3.36
		3	$ 3.72
		3	$ 3.00
		8	$ 3.28
Chip One Stop	N/A	1	$ 3.70
		10	$ 2.74
		50	$ 2.18
		100	$ 2.04
		200	$ 2.03
Chip1Stop	N/A	1	$ 3.73
		10	$ 3.35
		50	$ 2.65
		60	$ 0.86
		125	$ 0.81
		195	$ 0.78
		200	$ 2.52
		250	$ 2.02
		280	$ 0.72
		360	$ 0.70
		450	$ 0.67
DigiKey	N/A	1	$ 4.35
		10	$ 3.03
		100	$ 2.24
		250	$ 2.19
		500	$ 2.03
		750	$ 1.95
		1250	$ 1.91
Digikey	Cut Tape (CT)	1	$ 5.15
		10	$ 3.42
		100	$ 2.44
	Digi-Reel®	1	$ 5.15
		10	$ 3.42
		100	$ 2.44
	Tape & Reel (TR)	250	$ 2.19
		500	$ 2.03
		750	$ 1.94
		1250	$ 1.91
		1250	$ 1.91
		2500	$ 1.99
Mouser Electronics	N/A	1	$ 4.07
		10	$ 3.03
		100	$ 2.24
		250	$ 2.01
		500	$ 1.90
Quest Components	N/A	1	$ 8.46
		1	$ 4.47
		1	$ 8.46
		1	$ 4.50
		1	$ 4.50
		1	$ 4.47
		1	$ 4.47
		2	$ 3.36
		3	$ 3.72
		3	$ 3.00
		3	$ 3.72
		3	$ 3.72
		8	$ 3.28
		8	$ 3.28
		85	$ 2.75
		85	$ 2.75
		85	$ 2.75
		193	$ 4.65
		193	$ 4.65
		193	$ 4.65
		250	$ 2.11
		364	$ 2.46
		364	$ 2.46
		364	$ 2.46
		431	$ 4.23
		431	$ 4.23
		431	$ 4.23
Texas Instruments	SMALL T&R	1	$ 3.08
		100	$ 2.70
		250	$ 1.89
		1000	$ 1.52
Win Source Electronics	N/A	1	$ 3.74
		10	$ 3.36
		50	$ 2.67
		60	$ 0.86
		60	$ 0.86
		125	$ 0.81
		125	$ 0.81
		195	$ 0.78
		195	$ 0.78
		200	$ 2.61
		250	$ 2.00
		280	$ 0.72
		280	$ 0.72
		360	$ 0.70
		360	$ 0.70
		450	$ 0.67
		450	$ 0.67

TPS82084 Series

2-A, High-efficiency step-down converter module with integrated inductor

Part	Current - Output (Max) [Max]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Features	Applications	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Mounting Type	Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments TPS82084SILT The TPS82084/5 are 2-A/3-A step-down converter MicroSiP™ modules optimized for small solution size and high efficiency. The power module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.4MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 17-µA quiescent current. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation. The EN and PG pins, which support sequencing configurations, bring a flexible system design. An integrated soft startup reduces the inrush current required from the input supply. Over temperature protection and Hiccup short circuit protection deliver a robust and reliable solution. The TPS82084/5 are 2-A/3-A step-down converter MicroSiP™ modules optimized for small solution size and high efficiency. The power module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.4MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 17-µA quiescent current. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation. The EN and PG pins, which support sequencing configurations, bring a flexible system design. An integrated soft startup reduces the inrush current required from the input supply. Over temperature protection and Hiccup short circuit protection deliver a robust and reliable solution.	2 A	8-uSIP (3x2.8)	0.11 in	3 mm	0.12 in	2.8 mm	1.3 mm	0.05 "	Adjustable Output	ITE (Commercial)	8-LDFN Exposed Pad	6 V	0.8 V	1	6 V	Surface Mount	Non-Isolated PoL Module	2.5 V	125 °C	-40 °C
Texas Instruments TPS82084SILR The TPS82084/5 are 2-A/3-A step-down converter MicroSiP™ modules optimized for small solution size and high efficiency. The power module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.4MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 17-µA quiescent current. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation. The EN and PG pins, which support sequencing configurations, bring a flexible system design. An integrated soft startup reduces the inrush current required from the input supply. Over temperature protection and Hiccup short circuit protection deliver a robust and reliable solution. The TPS82084/5 are 2-A/3-A step-down converter MicroSiP™ modules optimized for small solution size and high efficiency. The power module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.4MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 17-µA quiescent current. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation. The EN and PG pins, which support sequencing configurations, bring a flexible system design. An integrated soft startup reduces the inrush current required from the input supply. Over temperature protection and Hiccup short circuit protection deliver a robust and reliable solution.	2 A	8-uSIP (3x2.8)	0.11 in	3 mm	0.12 in	2.8 mm	1.3 mm	0.05 "	Adjustable Output	ITE (Commercial)	8-LDFN Exposed Pad	6 V	0.8 V	1	6 V	Surface Mount	Non-Isolated PoL Module	2.5 V	125 °C	-40 °C

Description

General part information

TPS82084 Series

The TPS82084/5 are 2-A/3-A step-down converter MicroSiP™ modules optimized for small solution size and high efficiency. The power module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment.

To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.4MHz and automatically enters Power Save Mode operation at light load currents. In Power Save Mode, the device operates with typically 17-µA quiescent current. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation. The EN and PG pins, which support sequencing configurations, bring a flexible system design. An integrated soft startup reduces the inrush current required from the input supply. Over temperature protection and Hiccup short circuit protection deliver a robust and reliable solution.
