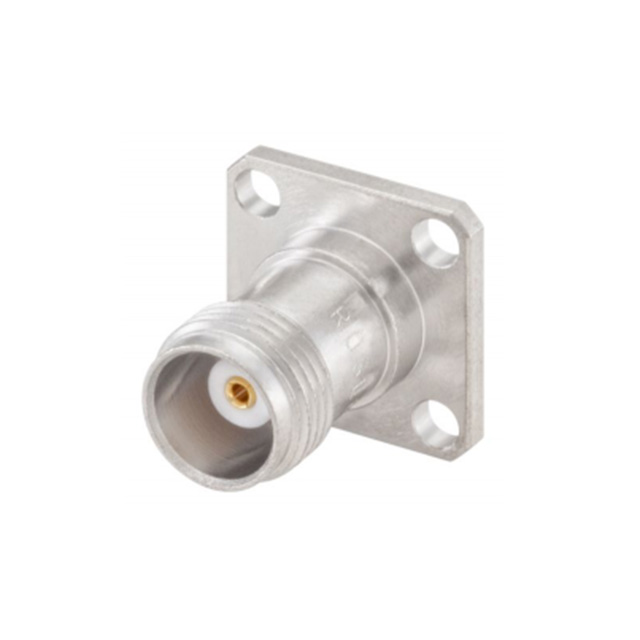

56K404-200N5

Active

Rosenberger

CONN TNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN TNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	56K404-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Type	Center Contact Material	Body Material	Mounting Feature	Impedance	Connector Style	Mating Cycles	Contact Termination	Housing Color	Dielectric Material	Frequency - Max [Max]	Shield Termination	Body Finish	Center Contact Plating	Voltage Rating	Number of Ports
Rosenberger 56K404-200N5	Female Socket Jack	Bronze	Brass	Flange	50 Ohms	TNC	500	Solder Cup	Silver	Polytetrafluoroethylene (PTFE)	10 GHz	Solder	White Bronze	Gold	500 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 11.57

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
