1-1337448-0

Active

TE Connectivity AMP Connectors

CONN BNC JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BNC JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337448-0

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

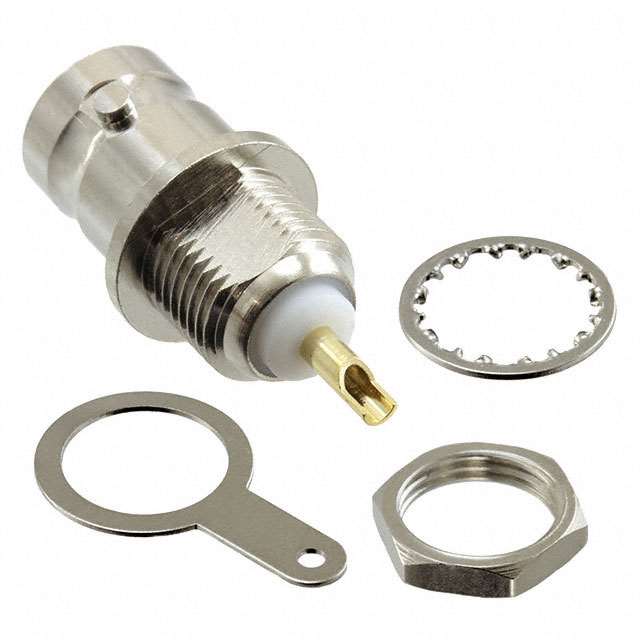

Includes	1 Nut, 1 Solder Tag, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder Tag
Voltage Rating	500 V

CONN BNC JACK STR 50 OHM SOLDER

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Includes	Mating Cycles	Center Contact Plating	Fastening Type	Connector Type	Contact Termination	Shield Termination	Mounting Feature	Frequency - Max [Max]	Number of Ports	Connector Style	Housing Color	Center Contact Material	Features	Body Material	Dielectric Material	Body Finish
TE Connectivity AMP Connectors 1-1337448-0	500 V	-65 ░C	165 °C	50 Ohms	1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag	500	Gold	Bayonet Lock	Female Socket, Jack	Solder Cup	Solder Tag	Bulkhead - Rear Side Nut	4 GHz	1	BNC	Silver	Phosphor Bronze	Extended Insulation	Brass	Polytetrafluoroethylene (PTFE)	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
