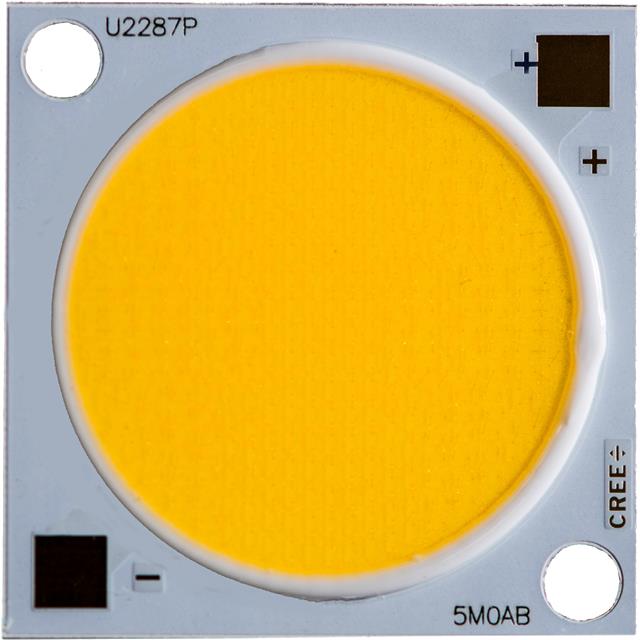

CMU2287-0000-000P0U0A57G

Active

Cree LED

LED CHIP WHITE 5700K 4320MA 2-PIN TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU2287-0000-000P0U0A57G

Active

Cree LED

LED CHIP WHITE 5700K 4320MA 2-PIN TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU2287-0000-000P0U0A57G

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	4.32 A
Current - Test	1.62 A
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	22 mm
Lumens/Watt @ Current - Test	141 lm/W
Luminous Flux @ Current/Temperature	11525 lm
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	50.5 V

CMU2287 Series

...

Part	Configuration	Temperature - Test	Type	Viewing Angle	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Height [z]	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Color	CCT (K)	Current - Test	Lens Type	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
Cree LED CMU2287-R040-00PP0U0A35G	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	90	Warm White	3500 K	1.62 A	Flat	22 mm
Cree LED CMU2287-R040-000P0H0A65G	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	80	Cool White	6500 K	1.62 A	Flat	22 mm	13206 lm	161 lm/W
Cree LED CMU2287-R040-000P0U0A27G	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	90	Warm White	2700 K	1.62 A	Flat	22 mm		129 lm/W
Cree LED CMU2287-R040-00PP0U0A40H	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	90	Neutral White	4000 K	1.62 A	Flat	22 mm
Cree LED CMU2287-R040-00PP0U0A30H	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	90	Warm White		1.62 A	Flat	22 mm
Cree LED CMU2287-0000-000P0U0A57G	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	90	Cool White	5700 K	1.62 A	Flat	22 mm	11525 lm	141 lm/W
Cree LED CMU2287-R040-000P0B0A57E	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	70	Cool White	5700 K	1.62 A	Flat	22 mm	14640 lm	179 lm/W
Cree LED CMU2287-0000-000P0H0A57G	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	80	Cool White	5700 K	1.62 A	Flat	22 mm	13100 lm	160 lm/W
Cree LED CMU2287-0000-000P0H0A65G	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	80	Cool White	6500 K	1.62 A	Flat	22 mm	13206 lm	161 lm/W
Cree LED CMU2287-R040-00PP0Z0A40H	Square	85 °C	Chip On Board (COB)	115 °	4.32 A	50.5 V	1.5 mm	28 mm	28 mm	95	Neutral White	4000 K	1.62 A	Flat	22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 17.14

Description

General part information

CMU2287 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU2287 White, Cool Square
