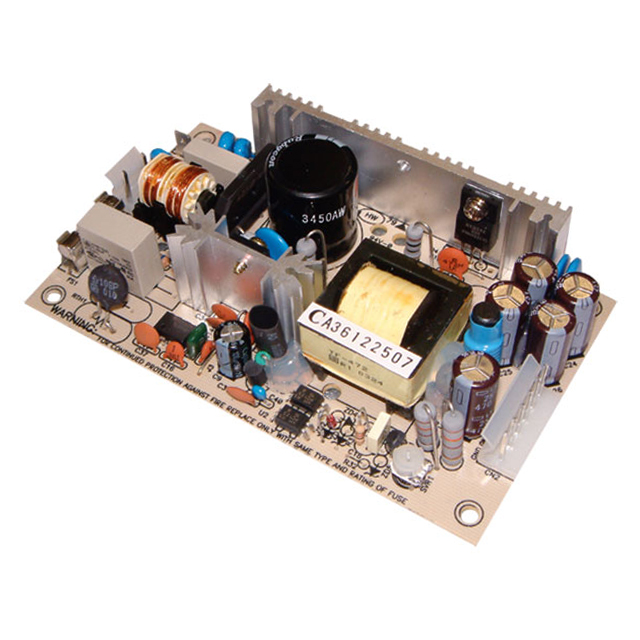

PT-45A

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V -5V 41W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V -5V 41W

Technical Specifications

Parameters and characteristics for this part

Specification	PT-45A

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	3 A
Current - Output 2	2 A
Current - Output 3	300 mA
Efficiency	75 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	41 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	2.99 in
Size / Dimension [y]	76 mm
Size / Dimension [z]	28 mm
Size / Dimension [z]	1.1 in
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-5 V

Part	Mounting Type	Minimum Load Required	Voltage - Output 3	Voltage - Output 1	Type	Current - Output 1	Voltage - Isolation	Approval Agency	Current - Output 2	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Power (Watts)	Current - Output 3	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 2	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]
MEAN WELL USA Inc. PT-45A	Chassis Mount		-5 V	5 V	Open Frame	3 A	3000 V	CB CE cURus TUV	2 A	Adjustable Output Universal Input	127 mm	28 mm	2.99 in	1.1 in	5 in	76 mm	75 %	41 W	300 mA	ITE (Commercial)	90 VAC 127 VDC	264 VAC 370 VDC	12 V	3	-10 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5V 12V -5V 90 ~ 264 VAC, 127 ~ 370 VDC Input
