300DP1R1BLKM1QE

Obsolete

E-Switch

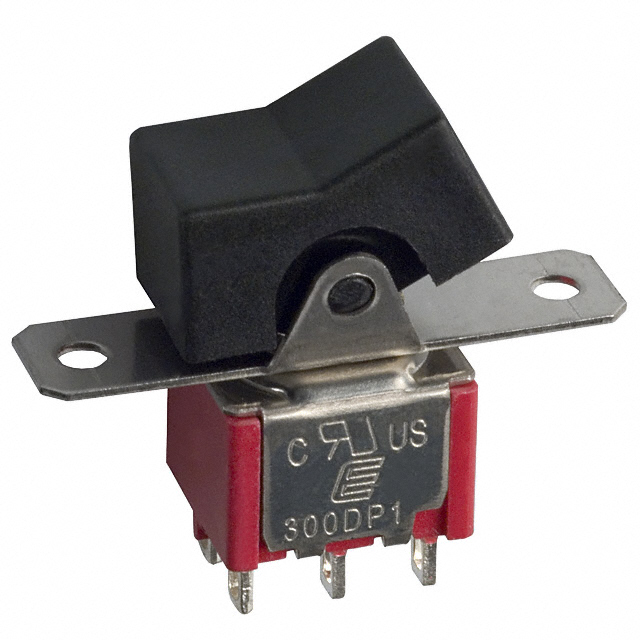

SWITCH ROCKER DPDT 5A 120V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH ROCKER DPDT 5A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Actuator Marking	Switch Function	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Features	Termination Style	Color - Actuator/Cap	Electrical Life	Voltage Rating - DC	Actuator Type
E-Switch 300DP1R1M1QE	DPDT	No Marking	On-On	5 A	-30 ░C	85 °C	Flange Panel Mount	17.96 mm	10.62 mm	120 V	Epoxy Sealed Terminals	Solder Lug	Black	40000 Cycles	28 V	Concave (Standard V)
E-Switch 300DP1R1BLKM6QE	DPDT	No Marking	On-On	5 A	-30 ░C	85 °C	Through Hole Right Angle	17.96 mm	10.62 mm	120 V	Epoxy Sealed Terminals	PC Pin	Black	40000 Cycles	28 V	Concave (Standard V)
E-Switch 300DP1R1BLKM1QE	DPDT	No Marking	On-On	5 A	-30 ░C	85 °C	Flange Panel Mount	17.96 mm	10.62 mm	120 V	Epoxy Sealed Terminals	Solder Lug	Black	40000 Cycles	28 V	Concave (Standard V)
E-Switch 300DP1R16WHTM1QE	DPDT	No Marking	On-On	5 A	-30 ░C	85 °C	Flange Panel Mount	12.78 mm	12.52 mm	120 V	Epoxy Sealed Terminals	Solder Lug	White	40000 Cycles	28 V	Paddle
E-Switch 300DP1R11BLKM1QE	DPDT	No Marking	On-On	5 A	-30 ░C	85 °C	Flange Panel Mount	12.78 mm	12.52 mm	120 V	Epoxy Sealed Terminals	Solder Lug	Black	40000 Cycles	28 V	Concave (Standard V)
E-Switch 300DP1R1BLKM7QE	DPDT	No Marking	On-On	5 A	-30 ░C	85 °C	Right Angle Through Hole Vertical	17.96 mm	10.62 mm	120 V	Epoxy Sealed Terminals	PC Pin	Black	40000 Cycles	28 V	Concave (Standard V)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 5A (AC/DC) 120 V Panel Mount, Flange

Technical documentation and resources

No documents available
