Q-0305A0003024i
ActiveAmphenol Custom Cable

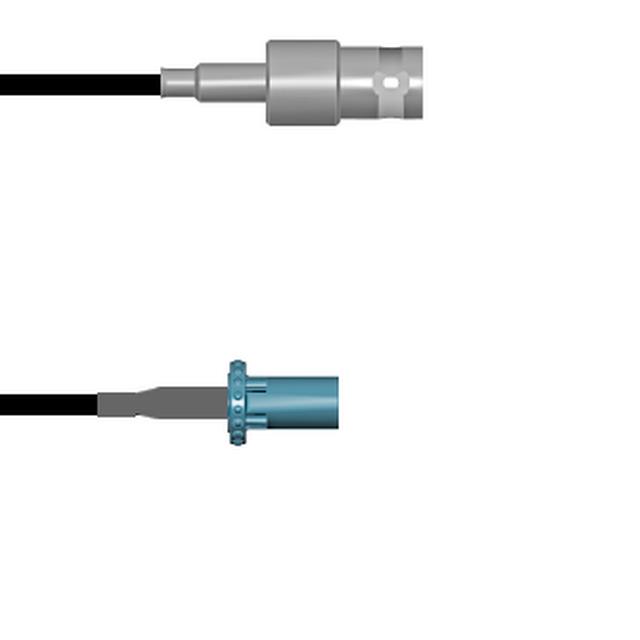

CBL ASSY BNC-FAKRA JACK-PLUG 24"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0305A0003024i
ActiveAmphenol Custom Cable
CBL ASSY BNC-FAKRA JACK-PLUG 24"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0305A0003024i |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Fakra Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to Fakra |
Q-0305A0 Series
| Part | 1st Connector | 1st Connector Mounting Type | Style | 2nd Connector Mounting Type | 2nd Contact Gender | Features | Color | 2nd Connector | Overall Impedance | 1st Contact Gender | Length | Length | Length | Cable Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Black | Fakra Plug | 50 Ohms | Female | 8.2 ' | 98.4 in | 2.5 m | RG-174 | 3 GHz |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Copper | Fakra Plug | 50 Ohms | Female | 9.8 ' | 118.1 in | 3 m | RG-316 | 3 GHz |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Copper | Fakra Plug | 50 Ohms | Female | 9 " | 228.6 mm | RG-316 | 3 GHz | |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Black | Fakra Plug | 50 Ohms | Female | 24 " | 609.6 mm | RG-174 | 3 GHz | |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Black | Fakra Plug | 50 Ohms | Female | 6 ft | 72 in | 1.8 m | RG-174 | 3 GHz |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Copper | Fakra Plug | 50 Ohms | Female | 6.6 ft | 78.7 in | 2 m | RG-316 | 3 GHz |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Black | Fakra Plug | 50 Ohms | Female | 12 " | 304.8 mm | RG-174 | 3 GHz | |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Copper | Fakra Plug | 50 Ohms | Female | 36 in | 91.44 cm | RG-316 | 3 GHz | |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Copper | Fakra Plug | 50 Ohms | Female | 6 in | 152.4 mm | RG-316 | 3 GHz | |
Amphenol Custom Cable | BNC Jack | Free Hanging (In-Line) | BNC to Fakra | Free Hanging (In-Line) | Male | Shielded | Black | Fakra Plug | 50 Ohms | Female | 7 ft | 84 in | 2.1 m | RG-174 | 3 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 43.17 | |
| 25 | $ 42.33 | |||
| 50 | $ 41.48 | |||
| 100 | $ 40.63 | |||
| 250 | $ 39.78 | |||
Description
General part information
Q-0305A0 Series
Cable Assembly Coaxial BNC to Fakra RG-174 24.00" (609.60mm)
Documents
Technical documentation and resources
No documents available
