1-1623708-4

Obsolete

TE Connectivity Passive Product

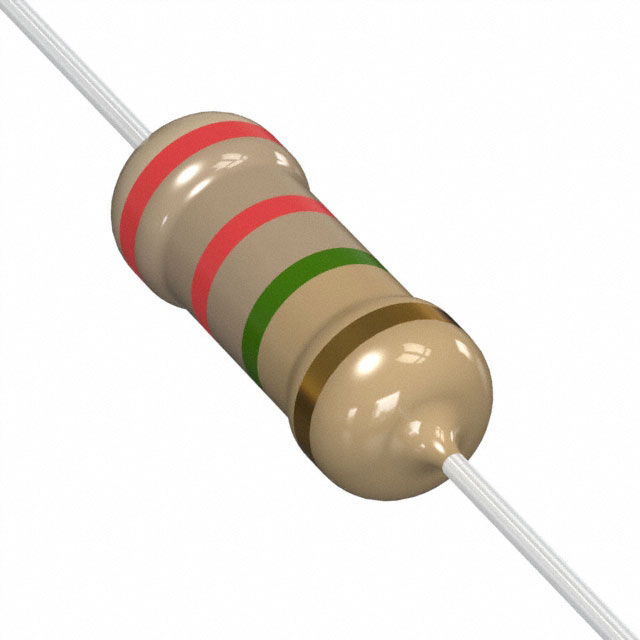

RES 2.2M OHM 5% 1/4W AXIAL

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

RES 2.2M OHM 5% 1/4W AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

RES 2.2M OHM 5% 1/4W AXIAL

Part	Power (Watts)	Power (Watts)	Temperature Coefficient	Package / Case	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Resistance	Supplier Device Package	Number of Terminations	Composition	Tolerance	Features	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Passive Product 1-1623708-4	0.25 W	250 mW	350 ppm/°C	Axial	0.098 in	0.256 "	2.5 mm	6.5 mm	2.2 MOhms	Axial	2	Thick Film	5 %	High Voltage	155 °C	-55 °C
TE Connectivity Passive Product 1-1623708-5	0.25 W	250 mW	350 ppm/°C	Axial	0.098 in	0.256 "	2.5 mm	6.5 mm	56 MOhms	Axial	2	Thick Film	5 %	High Voltage	155 °C	-55 °C
TE Connectivity Passive Product 1623708-9	0.25 W	250 mW	350 ppm/°C	Axial	0.098 in	0.256 "	2.5 mm	6.5 mm	4.7 MOhms	Axial	2	Thick Film	5 %	High Voltage	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.2 MOhms ±5% 0.25W, 1/4W Through Hole Resistor Axial High Voltage Thick Film
