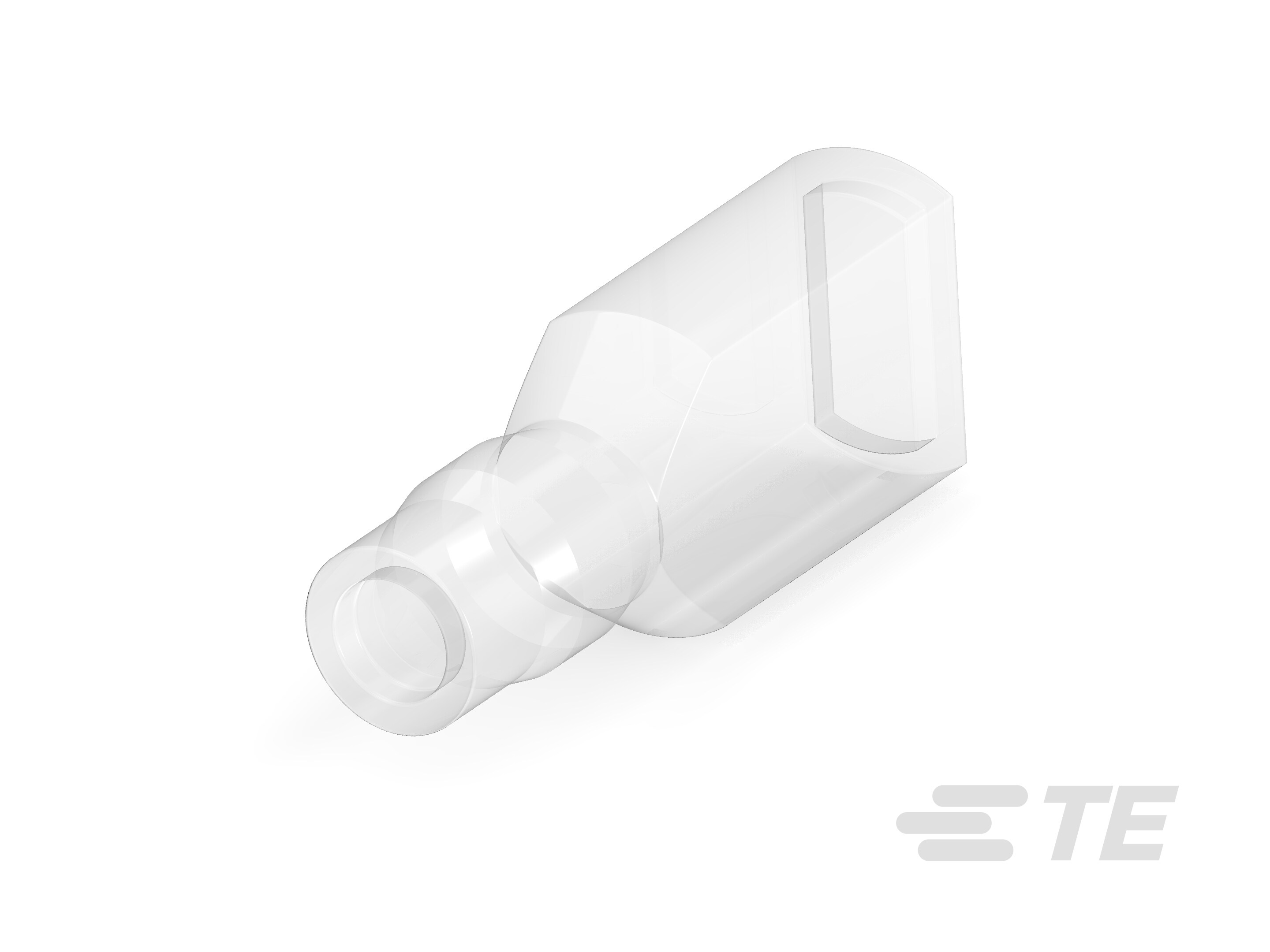

Specification	1-170823-6

Color	Clear
For Use With/Related Products	Quick Connects, 0.250" (6.35mm) Quick Connects
Gender	Female, Receptacle
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Related Product Length	0.25 in
Style	Sleeve
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

FASTON 250 Series

...

Part	Tab Width	Contact Material	Terminal Type	Gender	Termination	Tab Length	Mounting Type	Tab Thickness	Insulation	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Length - Overall	Terminal Angle	Insulation Diameter (Min)	Insulation Diameter (Max)	Number of Positions	Style	Color	Convert From (Adapter End) Connector Type	Convert From (Adapter End) Type	Convert From (Adapter End) Size	Features	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Convert To (Adapter End) Size	Convert From (Adapter End) Pin Gender	Convert From (Adapter End) Pin Count (Total)	Note	Material	For Use With/Related Products	Terminal Size
TE Connectivity AMP Connectors 63951-1	0.25 in	Brass	Standard	Male	Solder	0.312 in	Right Angle Through Hole	0.032 in	Non-Insulated	Tin
TE Connectivity AMP Connectors 41449	0.25 in	Brass	Standard	Female	Crimp	0.305 in	Free Hanging (In-Line)	0.032 in	Non-Insulated		10 AWG	14 AWG	0.77 in
TE Connectivity AMP Connectors 160739-6	0.25 in	Steel	Stacked	Female Male	Crimp	0.303 in	Free Hanging (In-Line)	0.032 in	Non-Insulated	Nickel	14 AWG	18 AWG	0.791 in
TE Connectivity AMP Connectors 1217154-1	0.25 in	Brass	Standard	Male	Solder	0.312 in	Through Hole	0.032 in	Non-Insulated	Tin			0.74 in
TE Connectivity AMP Connectors 62813-2	0.25 in	Brass	Angled Flag	Female	Crimp		Free Hanging (In-Line) Right Angle	0.032 in	Non-Insulated	Tin	18 AWG	22 AWG		90 °	0.06 in	0.1 in
TE Connectivity AMP Connectors 2-180930-0			Disconnect Quick Connect	Female Receptacle			Free Hanging (In-Line)										1	Sleeve	Natural
TE Connectivity AMP Connectors 8-61765-1		Brass							Non-Insulated	Tin										(6.35mm) 1/4" Quick Connect (6.35mm) 1/4" Quick Connect Male (2)	0.25" (6.35mm) 1/4" Quick Connect Male Male (2)	0.25 "	Side by Side Male Terminals	1/4" Quick Connect	Female	6.35 mm	Male	2 pins
TE Connectivity AMP Connectors 1969657-2			Disconnect Quick Connect	Female Receptacle			Free Hanging (In-Line)										1	Housing	Red										Contacts Not Included	Nylon Polyamide (PA)	0.250" (6.35mm) Quick Connects Flag	0.25 in
TE Connectivity AMP Connectors 735220-4	0.25 in	Bronze	Standard	Female	Crimp	0.303 in	Free Hanging (In-Line)	0.032 in	Non-Insulated	Tin	13 AWG	17 AWG	0.669 in
TE Connectivity AMP Connectors 6-160432-4	0.25 in	Phosphor Bronze	Standard	Female	Crimp	0.303 in	Free Hanging (In-Line)	0.032 in	Non-Insulated		16 AWG	20.5 AWG	0.748 in
