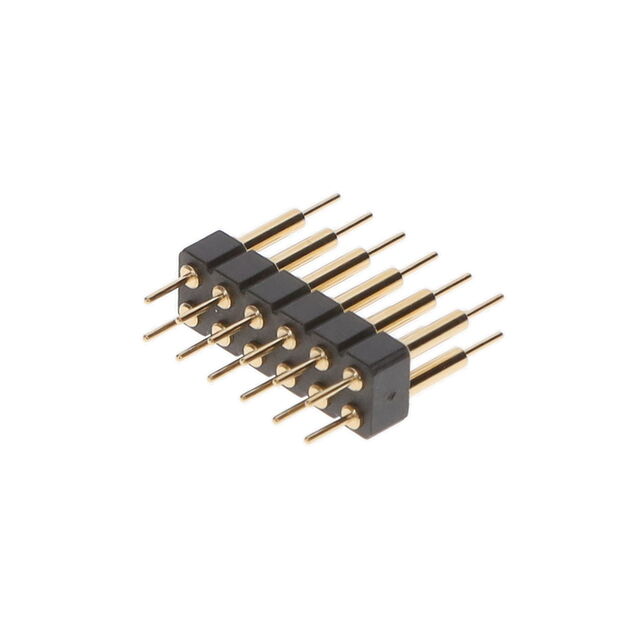

442-10-212-00-592000

Active

Mill-Max Manufacturing Corp.

CONN HDR 12POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

442-10-212-00-592000

Active

Mill-Max Manufacturing Corp.

CONN HDR 12POS 0.1 STACK T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	442-10-212-00-592000

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.585 in
Length - Overall Pin [x]	14.859 mm
Length - Post (Mating) [x]	3.18 mm
Length - Post (Mating) [x]	0.125 in
Length - Stack Height [x]	0.335 in
Length - Stack Height [x]	8.5 mm
Length - Tail [custom]	3.18 mm
Length - Tail [custom]	0.125 in
Mounting Type	Through Hole
Number of Positions	12
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

442-10 Series

Part	Termination	Row Spacing [x]	Row Spacing	Length - Tail [custom]	Length - Tail [custom]	Length - Stack Height [custom]	Length - Stack Height [custom]	Number of Positions	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish - Post (Mating)	Pitch [x]	Pitch [x]	Number of Rows	Color	Length - Stack Height [x]	Length - Stack Height [x]
Mill-Max Manufacturing Corp. 442-10-248-00-594000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in	0.835 in	21.2 mm	48	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	27.559 mm	1.085 in	Gold	2.54 mm	0.1 in	2	Black
Mill-Max Manufacturing Corp. 442-10-254-00-591000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in			54	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	11.684 mm	0.46 in	Gold	2.54 mm	0.1 in	2	Black	0.21 in	5.334 mm
Mill-Max Manufacturing Corp. 442-10-262-00-591000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in			62	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	11.684 mm	0.46 in	Gold	2.54 mm	0.1 in	2	Black	0.21 in	5.334 mm
Mill-Max Manufacturing Corp. 442-10-254-00-594000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in	0.835 in	21.2 mm	54	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	27.559 mm	1.085 in	Gold	2.54 mm	0.1 in	2	Black
Mill-Max Manufacturing Corp. 442-10-244-00-592000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in			44	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	14.859 mm	0.585 in	Gold	2.54 mm	0.1 in	2	Black	0.335 in	8.5 mm
Mill-Max Manufacturing Corp. 442-10-212-00-592000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in			12	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	14.859 mm	0.585 in	Gold	2.54 mm	0.1 in	2	Black	0.335 in	8.5 mm
Mill-Max Manufacturing Corp. 442-10-214-00-591000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in			14	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	11.684 mm	0.46 in	Gold	2.54 mm	0.1 in	2	Black	0.21 in	5.334 mm
Mill-Max Manufacturing Corp. 442-10-232-00-591000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in				Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	11.684 mm	0.46 in	Gold	2.54 mm	0.1 in	2	Black	0.21 in	5.334 mm
Mill-Max Manufacturing Corp. 442-10-218-00-591000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in			18	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	11.684 mm	0.46 in	Gold	2.54 mm	0.1 in	2	Black	0.21 in	5.334 mm
Mill-Max Manufacturing Corp. 442-10-248-00-591000	Solder	0.1 in	2.54 mm	3.18 mm	0.125 in			48	Through Hole	0.25 Ám	10 Áin	3.18 mm	0.125 in	11.684 mm	0.46 in	Gold	2.54 mm	0.1 in	2	Black	0.21 in	5.334 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 19.39
		33	$ 15.93
		132	$ 13.85
		528	$ 12.65

Description

General part information

442-10 Series

12 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
