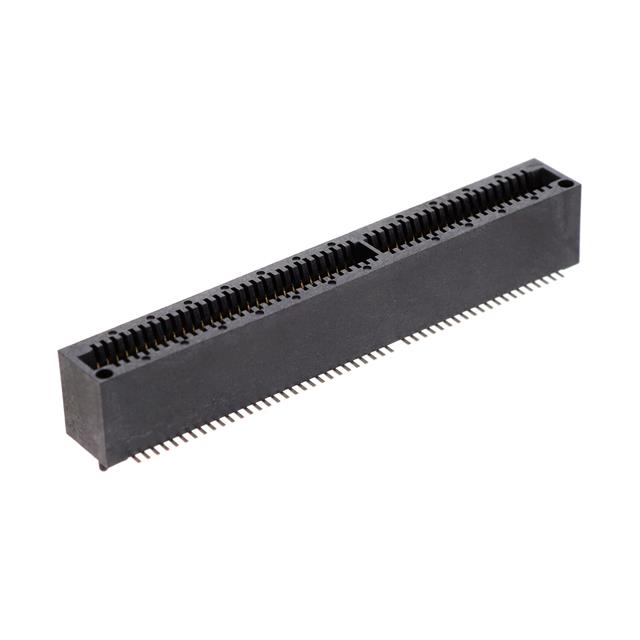

MEC1-150-02-S-D-A-K-TR

Active

Samtec Inc.

CONN EDGE DUAL FML 100POS 0.039

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MEC1 Datasheet +1

MEC1-150-02-S-D-A-K-TR

Active

Samtec Inc.

CONN EDGE DUAL FML 100POS 0.039

Deep-Dive with AI

DocumentsDatasheet MEC1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC1-150-02-S-D-A-K-TR

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Contact Type	Loop Bellows
Features	Pick and Place, Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

MEC1-150 Series

Part	Number of Rows	Contact Material	Read Out	Contact Type	Card Type	Mounting Type	Color	Contact Finish	Gender	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions	Card Thickness	Card Thickness	Features
Samtec Inc. MEC1-150-02-L-D-TR	2	Beryllium Copper	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	10 Áin	0.25 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-F-D-A-TR	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm	Board Guide
Samtec Inc. MEC1-150-02-FM-D-RA1-SL-TR	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount Right Angle	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-S-D-A-K-TR	2	Beryllium Copper	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	30 Áin	0.76 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm	Board Guide Pick and Place
Samtec Inc. MEC1-150-02-L-D-EM2	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Board Edge Straddle Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	10 Áin	0.25 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-S-D-RA2-SL-TR	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount Right Angle	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	30 Áin	0.76 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-S-D-RA2-SL	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount Right Angle	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	30 Áin	0.76 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-F-D-A-K	2	Beryllium Copper	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm	Board Guide Pick and Place
Samtec Inc. MEC1-150-02-FM-D-RA2-SL	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount Right Angle	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-F-D-LC	2	Beryllium Copper	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.04
		10	$ 9.06
		25	$ 8.16
		50	$ 7.38
	Tape & Reel (TR)	150	$ 6.63

Description

General part information

MEC1-150 Series

100 Position Female Connector Non Specified - Dual Edge Gold 0.039" (1.00mm) Black

MEC1-150-02-S-D-A-K-TR

Deep-Dive with AI

MEC1-150-02-S-D-A-K-TR

Deep-Dive with AI

Technical Specifications

MEC1-150 Series

Pricing

Description

MEC1-150 Series

Documents

Datasheet

MEC1 Datasheet

1.00 mm Mini Edge Card Socket, Vertical

MEC1-150 Series
