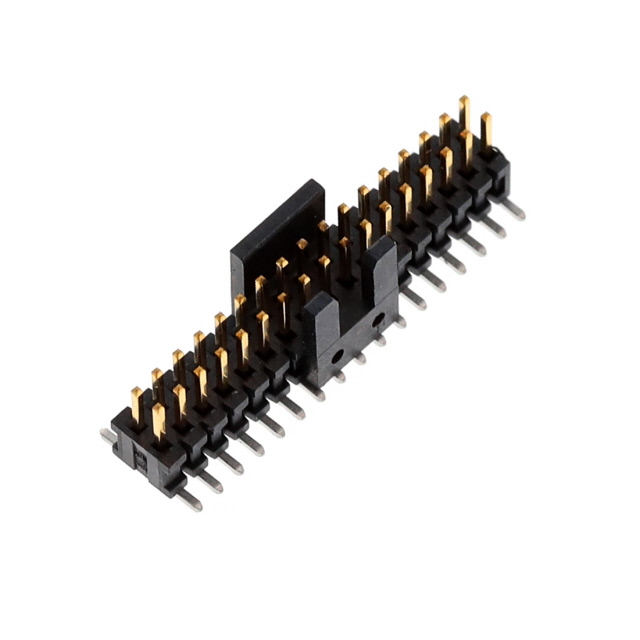

FTSH-117-01-L-DV-K-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD 34POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTSH Datasheet FW Series Other Related Documents 03 +2

FTSH-117-01-L-DV-K-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD 34POS 1.27MM

Deep-Dive with AI

DocumentsFTSH Datasheet FW Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTSH-117-01-L-DV-K-A-P-TR

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Shroud, Board Guide, Pick and Place
Insulation Color	Black
Insulation Height	2.51 mm
Insulation Height	0.099 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTSH-117 Series

...

Part	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Contact Type	Number of Rows	Insulation Material	Contact Shape	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Fastening Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Features	Shrouding	Connector Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. FTSH-117-03-F-D-ES	6.48 mm	0.255 in	Gold	2.51 mm	0.099 in	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	0.09 "	2.29 mm	All	Push-Pull	Tin	0.05 in	1.27 mm	Board to Board Cable	3 µin	0.076 µm	Black	0.05 in	1.27 mm	End Shrouds	Shrouded	Cuttable Header	0.065 in	1.65 mm	Through Hole	34
Samtec Inc. FTSH-117-01-L-DV-EJ-K-A-P-TR			Gold	2.51 mm	0.099 in	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0			All	Latch Lock/Eject Hooks	Tin	0.05 in	1.27 mm	Board to Board Cable	10 çin	0.25 çm	Black	0.05 in	1.27 mm		Shrouded	Cuttable Header	0.12 in	3.05 mm	Surface Mount	34
Samtec Inc. FTSH-117-01-F-DV-K-A-TR			Gold	2.51 mm	0.099 in	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0			All	Push-Pull	Tin	0.05 in	1.27 mm	Board to Board Cable	3 µin	0.076 µm	Black	0.05 in	1.27 mm		Unshrouded	Cuttable Header	0.12 in	3.05 mm	Surface Mount	34
Samtec Inc. FTSH-117-01-LM-D-RA-K			Gold	3.43 mm	0.135 "	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	0.09 "	2.29 mm	All	Push-Pull	Tin	0.05 in	1.27 mm	Board to Board Cable	10 çin	0.25 çm	Black	0.05 in	1.27 mm	Keying Shroud	Unshrouded	Cuttable Header	0.12 in	3.05 mm	Through Hole Right Angle	34
Samtec Inc. FTSH-117-01-L-DH-A-C			Gold	3.43 mm	0.135 "	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0			All	Push-Pull	Tin	0.05 in	1.27 mm	Board to Board Cable	10 çin	0.25 çm	Black	0.05 in	1.27 mm	Board Guide Pick and Place	Unshrouded	Cuttable Header	0.12 in	3.05 mm	Surface Mount Right Angle	34
Samtec Inc. FTSH-117-02-F-DV-A			Gold	2.51 mm	0.099 in	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0			All	Push-Pull	Tin	0.05 in	1.27 mm	Board to Board Cable	3 µin	0.076 µm	Black	0.05 in	1.27 mm	Board Guide	Unshrouded	Cuttable Header			Surface Mount	34	1.9 mm	0.075 in
Samtec Inc. FTSH-117-01-F-D-K	7.86 mm	0.309 in	Gold	2.51 mm	0.099 in	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0	0.09 "	2.29 mm	All	Push-Pull	Tin	0.05 in	1.27 mm	Board to Board Cable	3 µin	0.076 µm	Black	0.05 in	1.27 mm	Keying Shroud	Unshrouded	Cuttable Header	0.12 in	3.05 mm	Through Hole	34
Samtec Inc. FTSH-117-01-G-DV			Gold	2.51 mm	0.099 in	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0			All	Push-Pull	Gold	0.05 in	1.27 mm	Board to Board Cable	10 çin	0.25 çm	Black	0.05 in	1.27 mm		Unshrouded	Cuttable Header	0.12 in	3.05 mm	Surface Mount	34			3 µin	0.076 µm
Samtec Inc. FTSH-117-02-F-DV-ES-A			Gold	2.51 mm	0.099 in	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0			All	Push-Pull	Tin	0.05 in	1.27 mm	Board to Board Cable	3 µin	0.076 µm	Black	0.05 in	1.27 mm	Board Guide End Shrouds	Shrouded	Cuttable Header			Surface Mount	34	1.9 mm	0.075 in
Samtec Inc. FTSH-117-01-L-DV-K-A-P-TR			Gold	2.51 mm	0.099 in	-55 °C	125 °C	Phosphor Bronze	Solder	Male Pin	2	Liquid Crystal Polymer (LCP)	Square	UL94 V-0			All	Push-Pull	Tin	0.05 in	1.27 mm	Board to Board Cable	10 çin	0.25 çm	Black	0.05 in	1.27 mm	Board Guide Keying Shroud Pick and Place	Unshrouded	Cuttable Header	0.12 in	3.05 mm	Surface Mount	34
