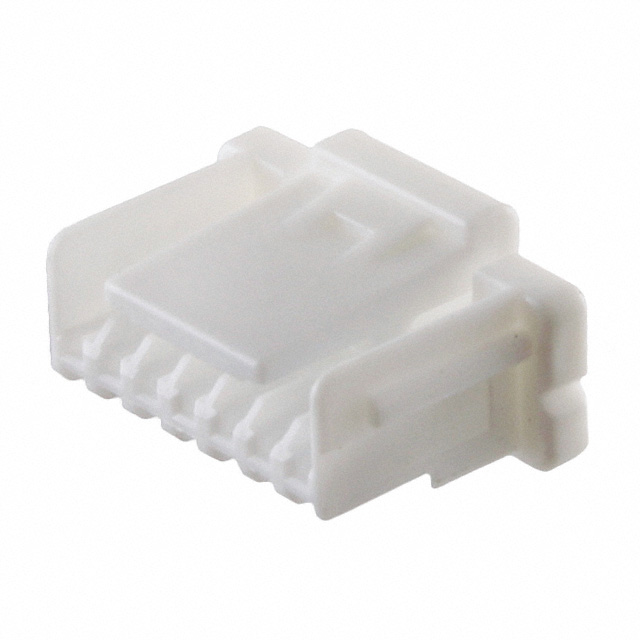

NSHR-07V-S

Active

JST Sales America Inc.

CONN RCPT HSG 7POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 7POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	NSHR-07V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Connector Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Insulation Material	Fastening Type	Number of Rows	Pitch [x]	Pitch [x]	Note	Color	Contact Type
JST Sales America Inc. NSHR-07V-S	Receptacle	Crimp	-25 °C	85 °C	Free Hanging (In-Line)	7	Polybutylene Terephthalate (PBT)	Latch Lock	1	0.039 in	1 mm	Contacts Not Included	Natural	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
