SP400-0.009-00-54

Active

Bergquist

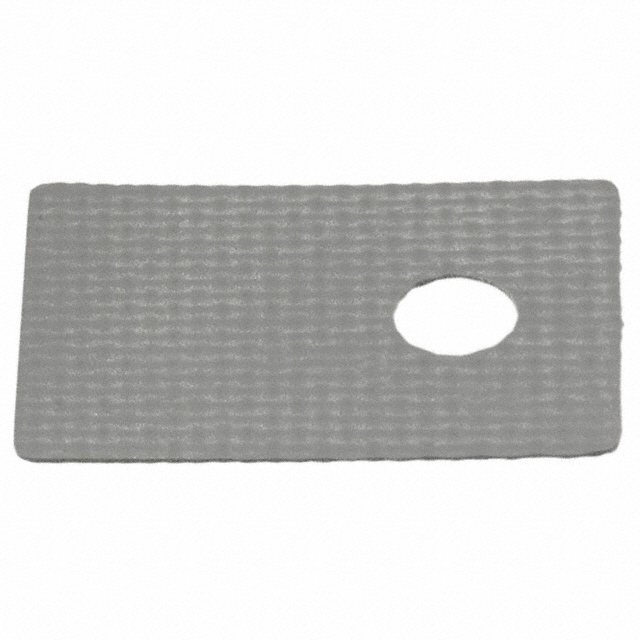

THERM PAD 19.05MMX12.7MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSil-Pad Metric Configurations Thermal Ordering Info +1

SP400-0.009-00-54

Active

Bergquist

THERM PAD 19.05MMX12.7MM GRAY

Deep-Dive with AI

DocumentsSil-Pad Metric Configurations Thermal Ordering Info +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.28
		10	$ 0.25
		50	$ 0.23
		100	$ 0.20
		500	$ 0.17
		1000	$ 0.13
		5000	$ 0.11

Description

General part information

SP400 Series

Thermal Pad Gray 19.05mm x 12.70mm Rectangular

Documents

Technical documentation and resources

Sil-Pad Metric Configurations

Datasheet

Thermal Ordering Info

Thermal Clad Selection Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SP400-0.009-00-54	SP400 Series

Adhesive	-	Adhesive - One Side
Backing, Carrier	Fiberglass	Fiberglass
Color	Gray	Gray
Material	Silicone Rubber	Silicone Rubber
Outline	-	9.14 mm
Outline [x]	19.05 mm	11.1 - 45.21 mm
Outline [y]	12.7 mm	5.08 - 31.75 mm
Shape	Rectangular	Rectangular, Round, Rhombus, Square
Shelf Life	12 Months	6 - 12 Months
Shelf Life Start	-	Date Received
Storage/Refrigeration Temperature [Max]	86 °F	86 °F
Storage/Refrigeration Temperature [Min]	41 °F	41 °F
Thermal Conductivity	0.9 W/m-K	0.9 W/m-K
Thermal Resistivity	1.4 °C/W	1.13 - 1.4 °C/W
Thickness	0.229 mm	0.178 - 0.229 mm
Thickness	0.009 in	0.007 - 0.009 in
Type	-	Conductive Insulator Pad
Usage	TO-220	RH-25, DO-4, TO-3, TO-220, TO-126, TO-66, TO-218, TO-247, TO-5

SP400 Series

THERM PAD 30.61MMX30.15MM GRAY

Part	Thermal Conductivity	Color	Shelf Life	Shape	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Outline [y]	Outline [x]	Material	Thickness	Thickness	Thermal Resistivity	Usage	Backing, Carrier	Shelf Life Start [custom]	Adhesive
Bergquist SP400-0.007-00-94	0.9 W/m-K	Gray	12 Months	Rectangular	41 °F	86 °F	30.15 mm	30.61 mm	Silicone Rubber	0.178 mm	0.007 in	1.13 °C/W	RH-25	Fiberglass
Bergquist SP400-0.009-00-22	0.9 W/m-K	Gray	12 Months	Round	41 °F	86 °F	5.08 mm	15.87 mm	Silicone Rubber	0.229 mm	0.009 in	1.4 °C/W	DO-4	Fiberglass
Bergquist SP400-0.007-00-05	0.9 W/m-K	Gray	12 Months	Rhombus	41 °F	86 °F	28.96 mm	41.91 mm	Silicone Rubber	0.178 mm	0.007 in	1.13 °C/W	TO-3	Fiberglass	Date Received
Bergquist SP400-0.007-AC-54	0.9 W/m-K	Gray	6 Months	Rectangular	41 °F	86 °F	12.7 mm	19.05 mm	Silicone Rubber	0.178 mm	0.007 in	1.13 °C/W	TO-220	Fiberglass		Adhesive - One Side
Bergquist SP400-0.007-00-50	0.9 W/m-K	Gray	12 Months	Rectangular	41 °F	86 °F	7.92 mm	11.1 mm	Silicone Rubber	0.178 mm	0.007 in		TO-126	Fiberglass
Bergquist SP400-0.009-00-11	0.9 W/m-K	Gray	12 Months	Rhombus	41 °F	86 °F	19.35 mm	33.32 mm	Silicone Rubber	0.229 mm	0.009 in	1.4 °C/W	TO-66	Fiberglass
Bergquist SP400-0.009-00-56	0.9 W/m-K	Gray	12 Months	Rectangular	41 °F	86 °F	14.27 mm	21.72 mm	Silicone Rubber	0.229 mm	0.009 in	1.4 °C/W	TO-220	Fiberglass
Bergquist SP400-0.009-00-54	0.9 W/m-K	Gray	12 Months	Rectangular	41 °F	86 °F	12.7 mm	19.05 mm	Silicone Rubber	0.229 mm	0.009 in	1.4 °C/W	TO-220	Fiberglass
Bergquist SP400-0.009-00-10	0.9 W/m-K	Gray	12 Months	Rhombus	41 °F	86 °F	25.4 mm	36.58 mm	Silicone Rubber	0.229 mm	0.009 in	1.4 °C/W	TO-3	Fiberglass
Bergquist SP400-0.007-00-104	0.9 W/m-K	Gray	12 Months	Rectangular	41 °F	86 °F	19.05 mm	25.4 mm	Silicone Rubber	0.178 mm	0.007 in	1.13 °C/W	TO-218, TO-220, TO-247	Fiberglass
