PPD-1/4

Active

Bertech

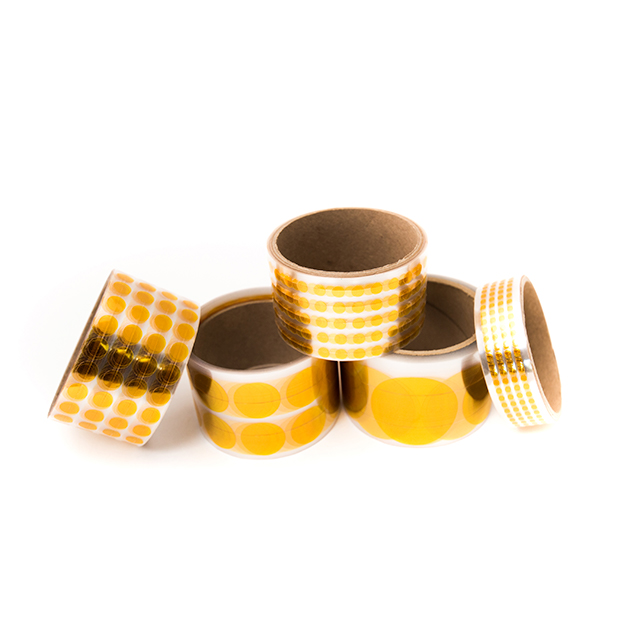

TAPE MASKING AMBER 1/4" DIA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPD-1/4

Active

Bertech

TAPE MASKING AMBER 1/4" DIA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPD-1/4

Adhesive	Silicone
Backing, Carrier	Polyimide
Color	Amber
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Masking
Temperature Range	260 °C
Temperature Range	500 °F
Thickness	2.5 mils
Thickness	0.064 mm
Thickness	0.0025 "
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Masking, High Temperature
Width	0.25 "
Width	1/4
Width	0.25 in

PPD Series

Part	Tape Type	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range	Temperature Range	Backing, Carrier	Color	Shelf Life Start	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life	Thickness	Thickness	Thickness	Width	Width	Width	Width	Width [diameter]	Width [diameter]
Bertech PPD-1/4	Masking	Masking High Temperature	1 mils	0.025 mm	0.001 "	260 °C	500 °F	Polyimide	Amber	Date of Manufacture	Silicone	1.5 mils	0.0015 in	0.038 mm	18 Months	2.5 mils	0.064 mm	0.0025 "	0.25 "	1/4	0.25 in
Bertech PPD-1/2	Masking	Masking High Temperature	1 mils	0.025 mm	0.001 "	260 °C	500 °F	Polyimide	Amber	Date of Manufacture	Silicone	1.5 mils	0.0015 in	0.038 mm	18 Months	2.5 mils	0.064 mm	0.0025 "	0.5 in			12.7 mm	0.5 in
Bertech PPD-3/4	Masking	Masking High Temperature	1 mils	0.025 mm	0.001 "	260 °C	500 °F	Polyimide	Amber	Date of Manufacture	Silicone	1.5 mils	0.0015 in	0.038 mm	18 Months	2.5 mils	0.064 mm	0.0025 "			19.05 mm	0.75 in	0.75 in
Bertech PPD-1/8	Masking	Masking High Temperature	1 mils	0.025 mm	0.001 "	260 °C	500 °F	Polyimide	Amber	Date of Manufacture	Silicone	1.5 mils	0.0015 in	0.038 mm	18 Months	2.5 mils	0.064 mm	0.0025 "				0.13 in 3.18 mm	0.125 in
Bertech PPD-1	Masking	Masking High Temperature	1 mils	0.025 mm	0.001 "	260 °C	500 °F	Polyimide	Amber	Date of Manufacture	Silicone	1.5 mils	0.0015 in	0.038 mm	18 Months	2.5 mils	0.064 mm	0.0025 "					1 in	25.4 mm
Bertech PPD-3/8	Masking	Masking High Temperature	1 mils	0.025 mm	0.001 "	260 °C	500 °F	Polyimide	Amber	Date of Manufacture	Silicone	1.5 mils	0.0015 in	0.038 mm	18 Months	2.5 mils	0.064 mm	0.0025 "				0.38 in 9.65 mm	0.375 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.31
		3	$ 44.70
		5	$ 43.15
		7	$ 42.11
		10	$ 41.08
		25	$ 38.50
		50	$ 36.43
		100	$ 34.88

Description

General part information

PPD Series

Masking Tape Silicone Adhesive Amber 0.25" (6.35mm) 1/4" dia X

Documents

Technical documentation and resources
