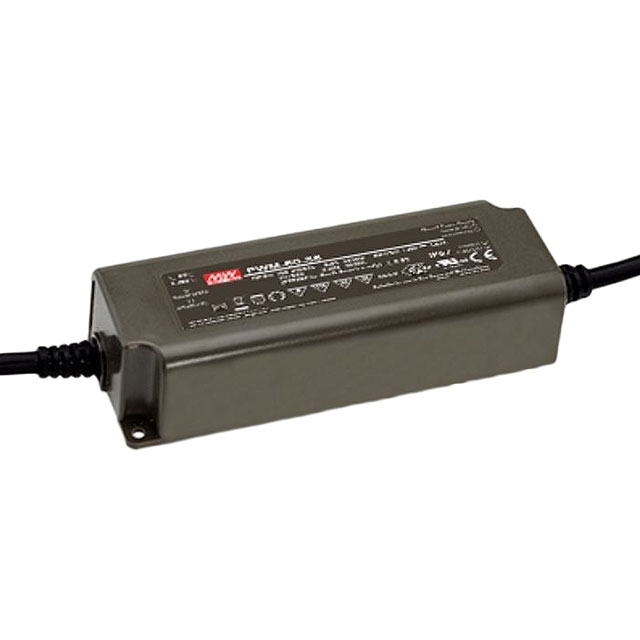

PWM-60-24DA

Active

MEAN WELL USA Inc.

O/P +24V2.5A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

O/P +24V2.5A

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Number of Outputs	Dimming	Topology	Voltage - Input (Min) [Min]	Efficiency	Type	Termination Style	Mounting Type	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
MEAN WELL USA Inc. PWM-60-24DA	IP67	305 VAC	2.5 A	24 V	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	3750 V	1	DALI	AC DC Converter	90 VAC	89 %	Constant Voltage	Wire Leads	Chassis Mount	OCP OTP OVP SCP	60 W	85 °C	-40 °C	CB CCC CE cURus EAC ENEC
MEAN WELL USA Inc. PWM-60-48	IP67	305 VAC	1.25 A	48 V	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	3750 V	1	Analog PWM	AC DC Converter	90 VAC	90 %	Constant Voltage	Wire Leads	Chassis Mount	OCP OTP OVP SCP	60 W	85 °C	-40 °C	CB CCC CE cURus ENEC
MEAN WELL USA Inc. PWM-60-36	IP67	305 VAC	1.67 A	36 V	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	3750 V	1	Analog PWM	AC DC Converter	90 VAC	90 %	Constant Voltage	Wire Leads	Chassis Mount	OCP OTP OVP SCP	60 W	85 °C	-40 °C	CB CCC CE cURus ENEC
MEAN WELL USA Inc. PWM-60-12	IP67	305 VAC	5 A	12 V	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	3750 V	1	Analog PWM	AC DC Converter	90 VAC	86 %	Constant Voltage	Wire Leads	Chassis Mount	OCP OTP OVP SCP	60 W	85 °C	-40 °C	CB CCC CE cURus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	30	$ 31.26

General part information

2.5A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
