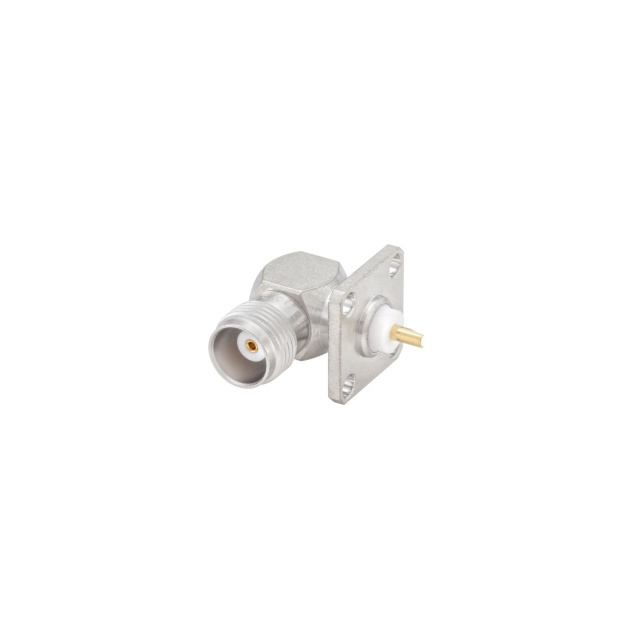

56K201-200N5

Active

Rosenberger

TNC RIGHT ANGLE JACK

Search across all available documentation for this part.

Active

Rosenberger

TNC RIGHT ANGLE JACK

Technical Specifications

Parameters and characteristics for this part

Specification	56K201-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Material	Housing Color	Connector Type	Body Material	Center Contact Plating	Body Finish	Connector Style	Mating Cycles	Voltage Rating	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shield Termination	Number of Ports	Contact Termination	Frequency - Max [Max]	Dielectric Material
Rosenberger 56K201-200N5	Beryllium Copper	Silver	Female Socket Jack	Brass	Gold	White Bronze	TNC	500	500 V	Panel Mount Right Angle	50 Ohms	-65 ░C	165 °C	Flange	Solder	1	Solder Cup	10 GHz	Polytetrafluoroethylene (PTFE)
Rosenberger 56K201-400A5	Beryllium Copper	Silver	Female Socket Jack	Brass	Gold	Nickel	TNC	500	500 V	Through Hole Right Angle	50 Ohms	-65 ░C	165 °C		Solder	1	Solder	10 GHz	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder Cup
