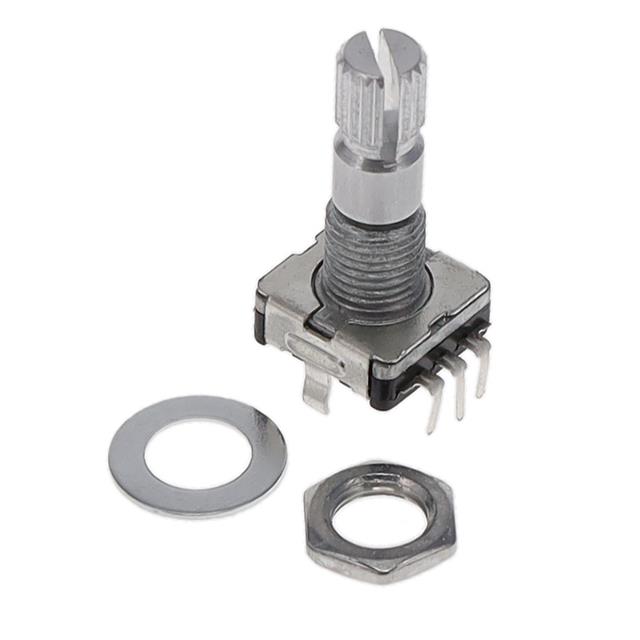

PEC11L-4120K-S0020

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 20PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 20PPR

Technical Specifications

Parameters and characteristics for this part

Specification	PEC11L-4120K-S0020

Actuator Type	Knurled End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	20
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

Part	Mounting Type	Orientation	Pulses per Revolution	Termination Style	Actuator Type [diameter]	Actuator Type	Output Type	Encoder Type	Rotational Life (Cycles Min) [Min]
Bourns Inc. PEC11L-4220F-S0015	Panel PCB Through Hole	Vertical	15	PC Pin	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	100K
Bourns Inc. PEC11L-4120K-S0020	Panel PCB Through Hole	Vertical	20	PC Pin	6 mm	Knurled End	Quadrature (Incremental)	Mechanical	100K
Bourns Inc. PEC11L-4015F-N0020	Panel PCB Through Hole	Vertical	20	PC Pin	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	100K
Bourns Inc. PEC11L-4220F-S0012	Panel PCB Through Hole	Vertical	12 pulses per revolution	PC Pin	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	100K
Bourns Inc. PEC11L-4215F-S0015	Panel PCB Through Hole	Vertical	15	PC Pin	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	100K
Bourns Inc. PEC11L-4215K-S0015
Bourns Inc. PEC11L-4020F-N0020	Panel PCB Through Hole	Vertical	20	PC Pin	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	100K
Bourns Inc. PEC11L-4225K-N0015	Panel PCB Through Hole	Vertical	15	PC Pin	6 mm	Knurled End	Quadrature (Incremental)	Mechanical	100K
Bourns Inc. PEC11L-4020F-S0015	Panel PCB Through Hole	Vertical	15	PC Pin	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	100K
Bourns Inc. PEC11L-4015F-N0015	Panel PCB Through Hole	Vertical	15	PC Pin	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	100K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 20 Quadrature (Incremental) Vertical
