Specification	282841-3

Clamp Material	Brass
Clamp Plating	Nickel Plated
Color	Green
Contact Material	Brass
Current	17.5 A
Features	Interlocking (Side)
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Pitch	5.08 mm
Plating	Tin Plated
Positions Per Level	3
Screw Material	Brass
Screw Plating	Nickel Plated
Screw Thread	M3
Torque - Screw	0.79 Nm
Voltage	300 V
Wire Gauge (AWG) (Max)	30 AWG
Wire Gauge (AWG) (Min)	12 AWG
Wire Termination	Rising Cage Clamp, Screw

282841 Series

Part	Wire Termination	Current	Number of Levels	Positions Per Level	Pitch	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Voltage	Mating Orientation	Features	Mounting Type	Clamp Material	Clamp Plating	Torque - Screw	Screw Material	Screw Plating	Screw Thread	Contact Material	Plating	Housing Material

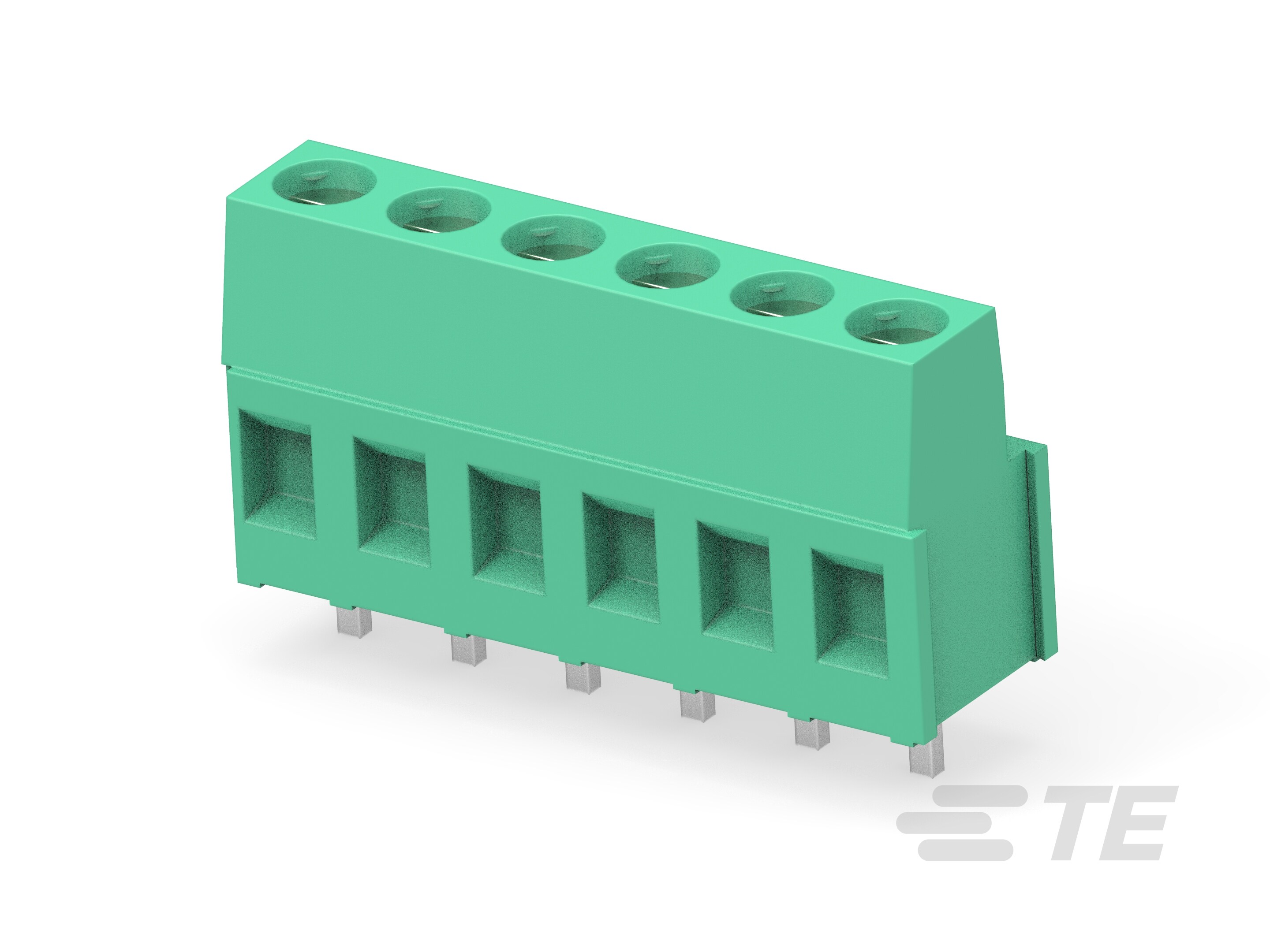

TE Connectivity AMP Connectors 282841-6	Rising Cage Clamp Screw	17.5 A	1	6	5.08 mm	Green	12 AWG	30 AWG	300 V	Horizontal with Board	Interlocking (Side)	Through Hole	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	M3	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide

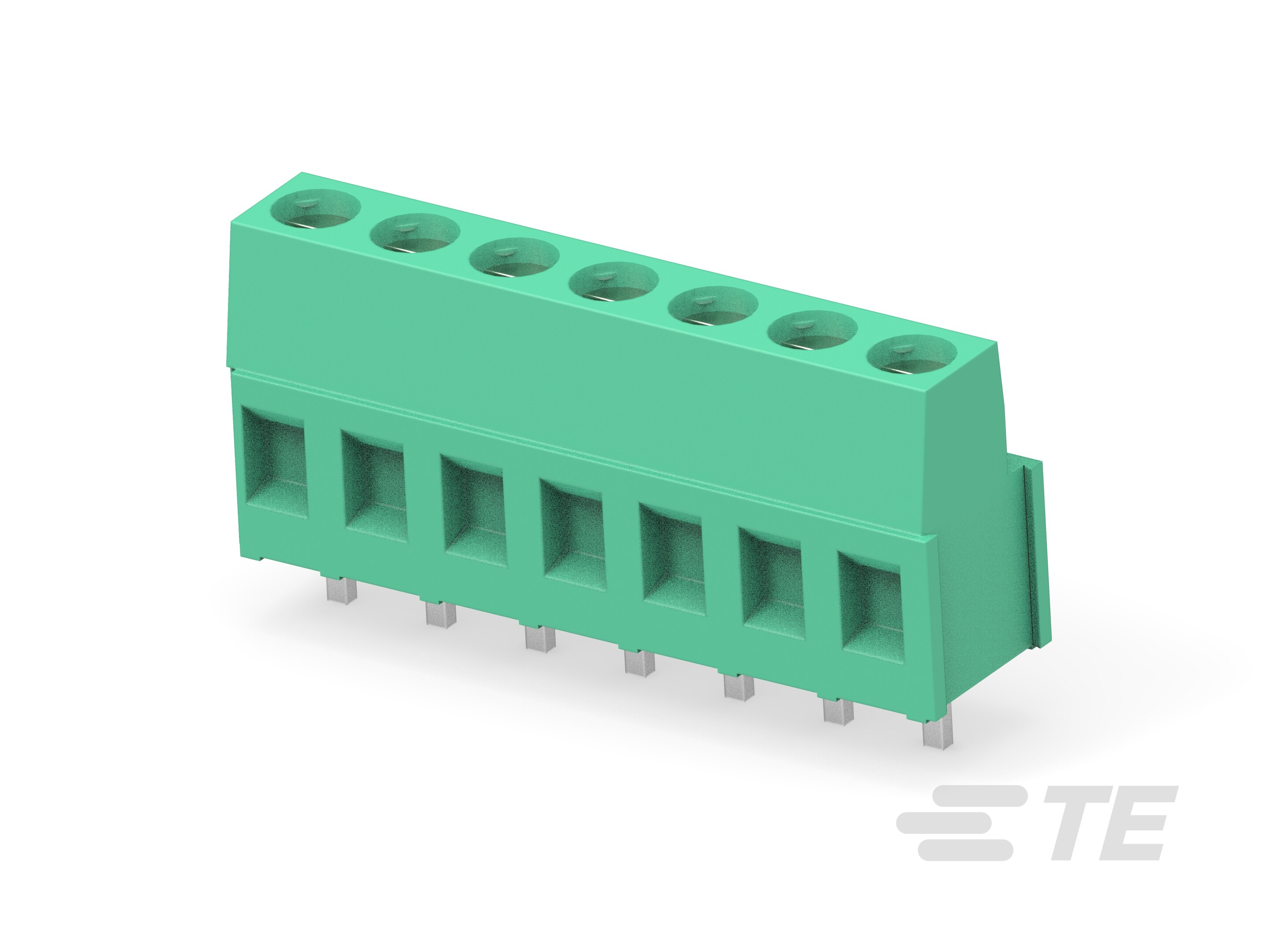

TE Connectivity AMP Connectors 282841-7	Rising Cage Clamp Screw	17.5 A	1	7	5.08 mm	Green	12 AWG	30 AWG	300 V	Horizontal with Board	Interlocking (Side)	Through Hole	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	M3	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide

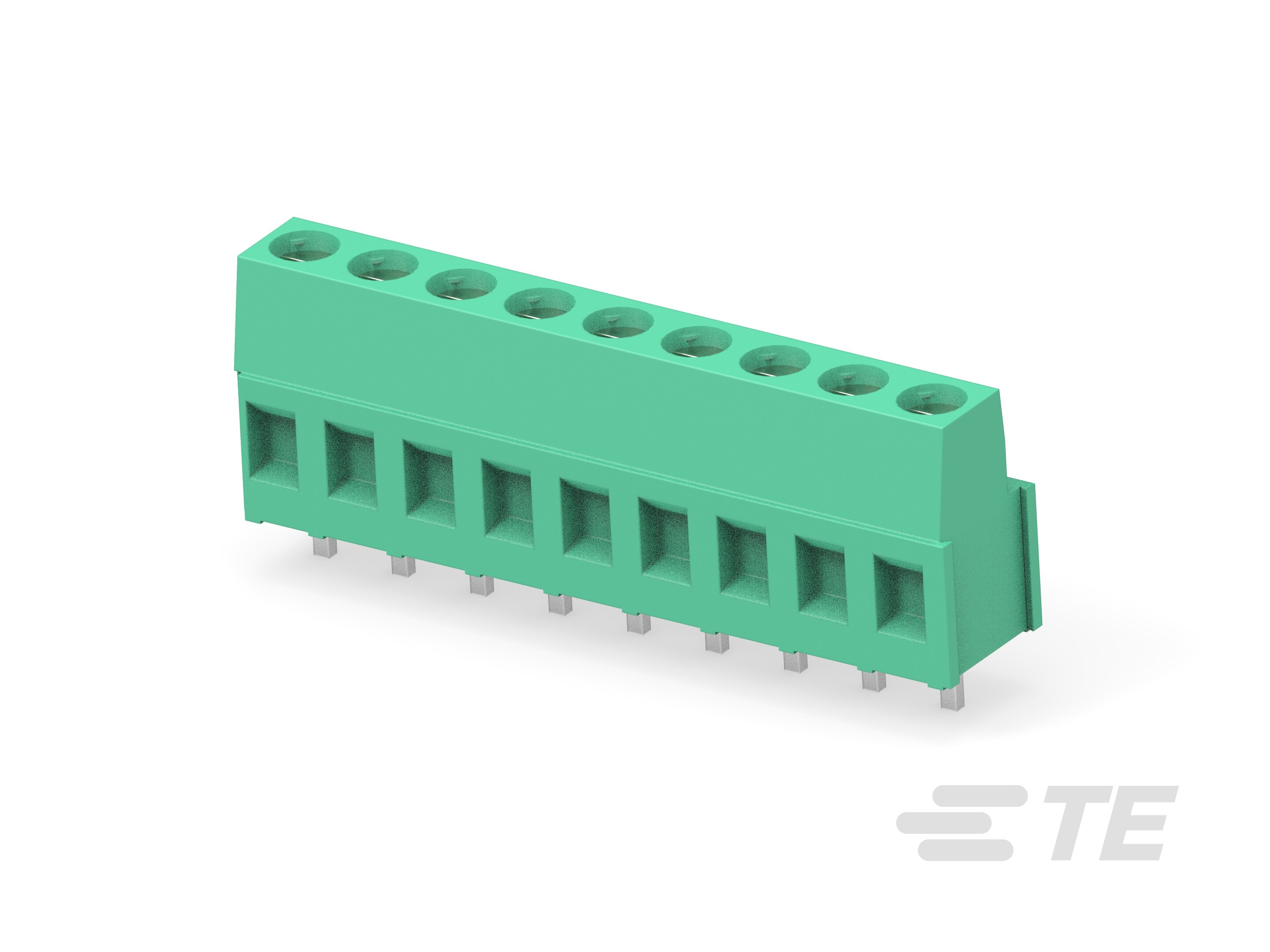

TE Connectivity AMP Connectors 282841-9	Rising Cage Clamp Screw	17.5 A	1	9	5.08 mm	Green	12 AWG	30 AWG	300 V	Horizontal with Board	Interlocking (Side)	Through Hole	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	M3	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282841-3	Rising Cage Clamp Screw	17.5 A	1	3	5.08 mm	Green	12 AWG	30 AWG	300 V	Horizontal with Board	Interlocking (Side)	Through Hole	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	M3	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide

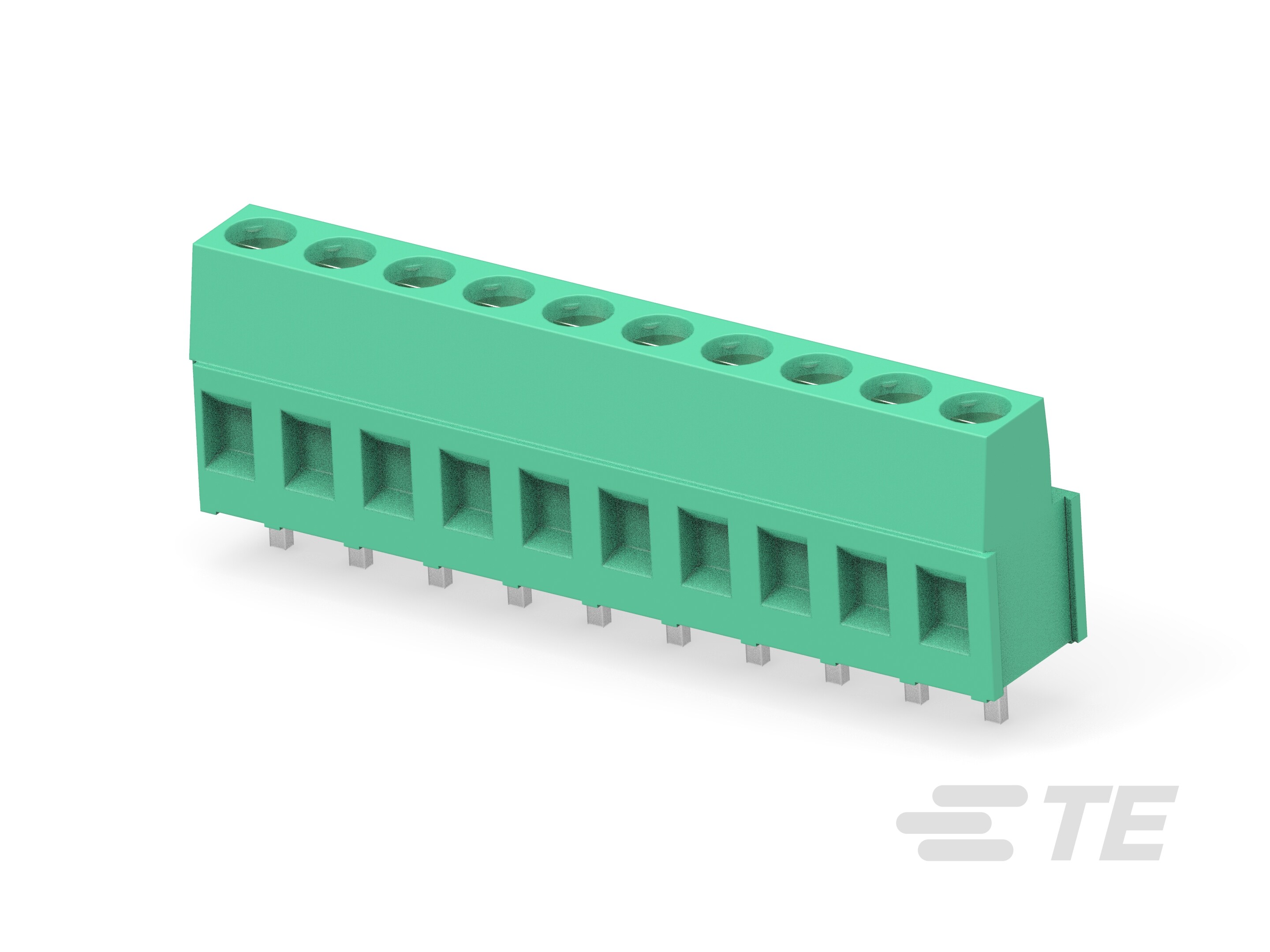

TE Connectivity AMP Connectors 1-282841-0	Rising Cage Clamp Screw	17.5 A	1	10	5.08 mm	Green	12 AWG	30 AWG	300 V	Horizontal with Board	Interlocking (Side)	Through Hole	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	M3	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide

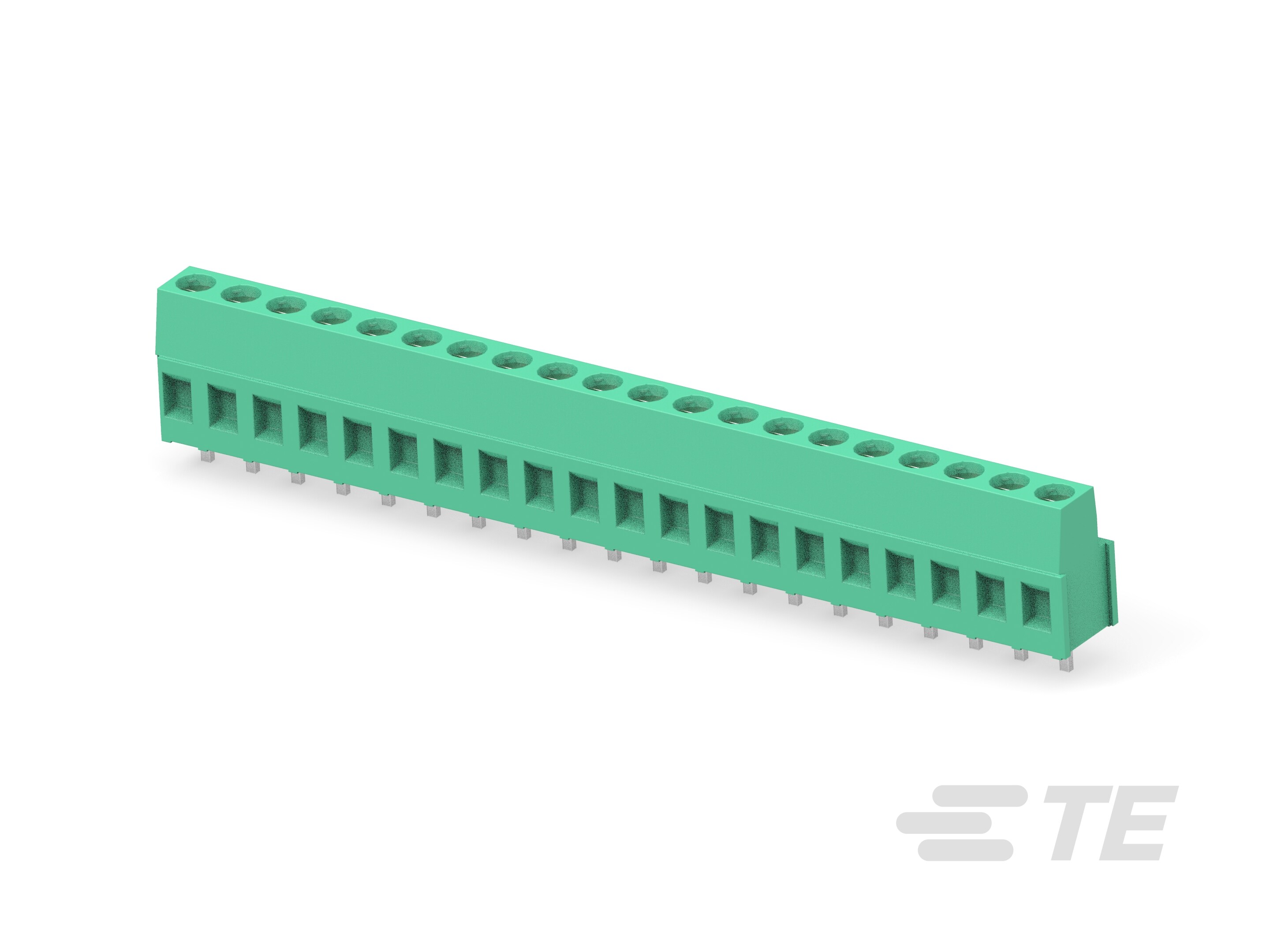

TE Connectivity AMP Connectors 2-282841-3	Rising Cage Clamp Screw	17.5 A	1	20	5.08 mm	Green	12 AWG	30 AWG	300 V	Horizontal with Board	Interlocking (Side)	Through Hole	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	M3	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282841-5	Rising Cage Clamp Screw	17.5 A	1	5	5.08 mm	Green	12 AWG	30 AWG	300 V	Horizontal with Board	Interlocking (Side)	Through Hole	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	M3	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282841-2	Rising Cage Clamp Screw	17.5 A	1	2	5.08 mm	Green	12 AWG	30 AWG	300 V	Horizontal with Board	Interlocking (Side)	Through Hole	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	M3	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide
