Q-1U0200005084i

Active

Amphenol Custom Cable

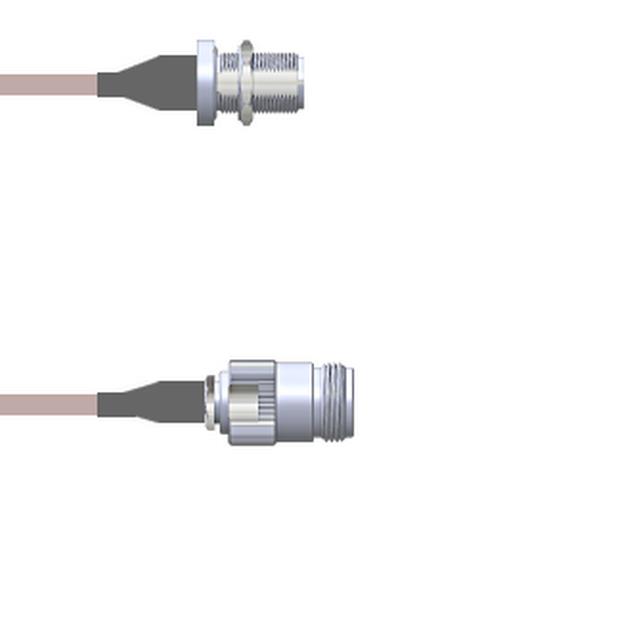

CBL ASSY NTYPE JACK TO JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U0200005084i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U0200005084i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1U0200 Series

Part	Style	2nd Contact Gender	Features	Length	Length	Length	Color	Overall Impedance	1st Connector	Cable Type	1st Connector Mounting Feature	Frequency - Max [Max]	2nd Connector	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-1U02000051.5M	N-Type to N-Type	Female	Shielded	59.1 in	4.9 ft	1.5 m	Copper	50 Ohms	N-Type Jack	RG-316	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U0200005084i	N-Type to N-Type	Female	Shielded	84 in	7 ft	2.1 m	Copper	50 Ohms	N-Type Jack	RG-316	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U0200005012i	N-Type to N-Type	Female	Shielded	12 "		304.8 mm	Copper	50 Ohms	N-Type Jack	RG-316	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U0200003012i	N-Type to N-Type	Female	Shielded	12 "		304.8 mm	Black	50 Ohms	N-Type Jack	RG-174	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U0200003.75M	N-Type to N-Type	Female	Shielded	29.53 "		750 mm	Black	50 Ohms	N-Type Jack	RG-174	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U0200003003i	N-Type to N-Type	Female	Shielded	3 in		76.2 mm	Black	50 Ohms	N-Type Jack	RG-174	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U0200003048i	N-Type to N-Type	Female	Shielded	48 in	4 ft	1200 mm	Black	50 Ohms	N-Type Jack	RG-174	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U0200005009i	N-Type to N-Type	Female	Shielded	9 "		228.6 mm	Copper	50 Ohms	N-Type Jack	RG-316	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U0200003018i	N-Type to N-Type	Female	Shielded				Black	50 Ohms	N-Type Jack	RG-174	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1U0200005108i	N-Type to N-Type	Female	Shielded	108 in	9 ft	2.7 m	Copper	50 Ohms	N-Type Jack	RG-316	Bulkhead - Front Side Nut	11 GHz	N-Type Jack	Panel Mount	Free Hanging (In-Line)	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 128.48
		25	$ 126.02
		50	$ 123.56
		100	$ 121.10
		250	$ 118.63

Description

General part information

Q-1U0200 Series

Cable Assembly Coaxial N-Type to N-Type RG-316 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
