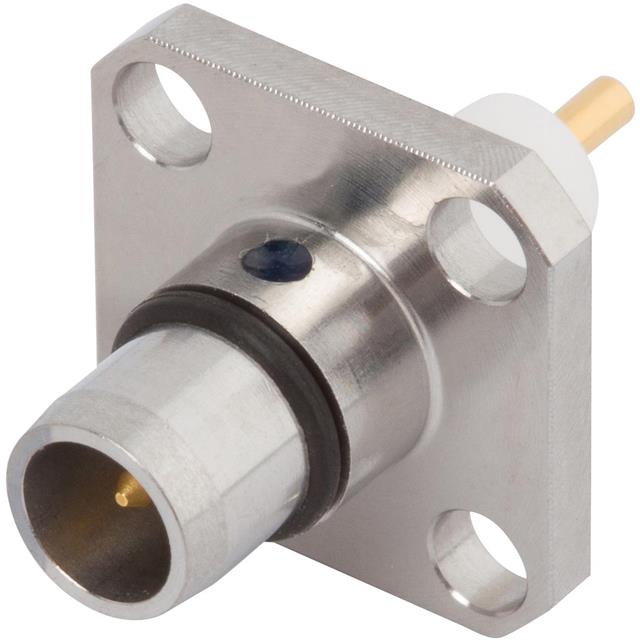

Specification	SF1755-6104

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max	22 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	5000 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Shield Termination	Solder

SF1755 Series

Part	Body Material	Mating Cycles	Dielectric Material	Center Contact Plating	Housing Color	Contact Termination	Shield Termination	Mounting Type	Impedance	Features	Connector Style	Connector Type	Mounting Feature	Fastening Type	Number of Ports	Frequency - Max	Center Contact Material
McGill Microwave Systems SF1755-6104	Stainless Steel	5000 cycles	Polytetrafluoroethylene (PTFE)	Gold	Silver	Solder	Solder	Panel Mount	50 Ohm	Extended Insulation	BMA	Male Pin Plug	Flange	Snap-On	1	22 GHz	Beryllium Copper
