1-1355668-2

Active

TE Connectivity AMP Connectors

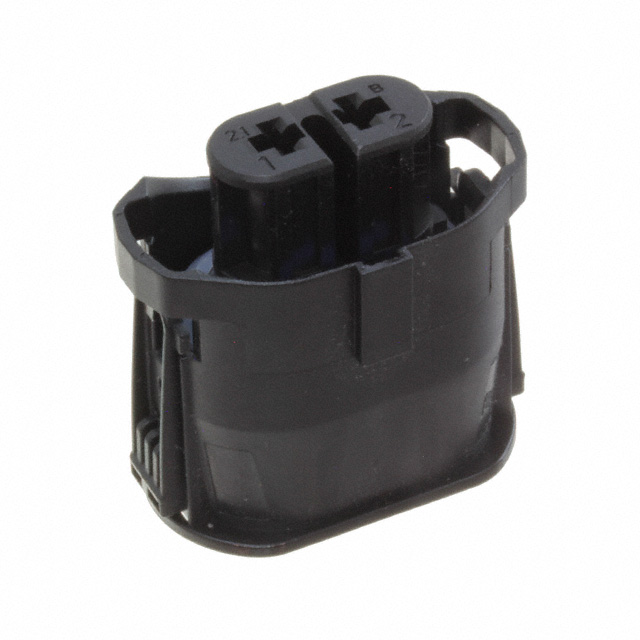

CONN RCPT HSG 2POS 6.10MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 6.10MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1355668-2	1355668 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	6.1 mm	6.1 mm
Pitch [x]	0.24 in	0.24 in

CONN RCPT HSG 2POS 6.10MM

Part	Mounting Type	Features	Pitch [x]	Pitch [x]	Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Note	Number of Positions	Connector Type	Contact Type	Insulation Material
TE Connectivity AMP Connectors 1-1355668-2	Free Hanging (In-Line)	Sealed	6.1 mm	0.24 in	Black	1	-40 °C	130 °C	Crimp	Latch Lock	Contacts Not Included	2	Receptacle	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 2-1355668-2	Free Hanging (In-Line)	Sealed	6.1 mm	0.24 in	Black	1	-40 °C	130 °C	Crimp	Latch Lock	Contacts Not Included	2	Receptacle	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.240" (6.10mm)
