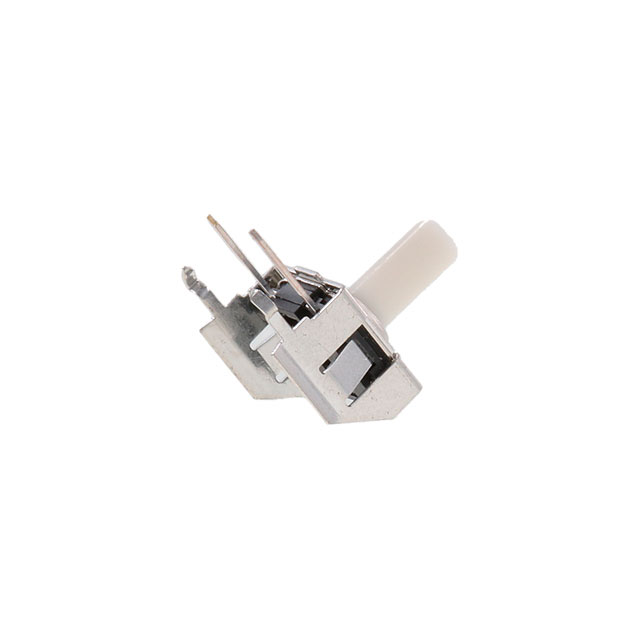

TL6110DF300QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Illumination	Termination Style	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length, Right Angle	Actuator Material	Switch Travel	Operating Force	Actuator Type	Switch Function	Contact Rating @ Voltage	Actuator Orientation	Circuit	Outline [x]	Outline [y]	Mounting Type
E-Switch TL6110CF500QP	Non-Illuminated	PC Pin	200000 Cycles	85 °C	-40 °C	5.7 mm	Nylon, Polyamide (PA)	0.5 mm	0.5 kgf	Standard	Off-Mom	0.05 A, 12 VDC	Side Actuated	SPST-NO	8.3 mm	5.8 mm	Through Hole, Right Angle
E-Switch TL6110AF500QP	Non-Illuminated	PC Pin	200000 Cycles	85 °C	-40 °C	3.5 mm	Nylon, Polyamide (PA)	0.5 mm	0.5 kgf	Standard	Off-Mom	0.05 A, 12 VDC	Side Actuated	SPST-NO	8.3 mm	5.8 mm	Through Hole, Right Angle
E-Switch TL6110CF300QP	Non-Illuminated	PC Pin	500000 Cycles	85 °C	-40 °C	5.7 mm	Nylon, Polyamide (PA)	0.5 mm	300 gf	Standard	Off-Mom	0.05 A, 12 VDC	Side Actuated	SPST-NO	8.3 mm	5.8 mm	Through Hole, Right Angle
E-Switch TL6110BF300QP	Non-Illuminated	PC Pin	500000 Cycles	85 °C	-40 °C	4 mm	Nylon, Polyamide (PA)	0.5 mm	300 gf	Standard	Off-Mom	0.05 A, 12 VDC	Side Actuated	SPST-NO	8.3 mm	5.8 mm	Through Hole, Right Angle
E-Switch TL6110DF300QP	Non-Illuminated	PC Pin	500000 Cycles	85 °C	-40 °C	8.8 mm	Nylon, Polyamide (PA)	0.5 mm	300 gf	Standard	Off-Mom	0.05 A, 12 VDC	Side Actuated	SPST-NO	8.3 mm	5.8 mm	Through Hole, Right Angle
E-Switch TL6110CF160QP	Non-Illuminated	PC Pin	1000000 Cycles	85 °C	-40 °C	5.7 mm	Nylon, Polyamide (PA)	0.5 mm		Standard	Off-Mom	0.05 A, 12 VDC	Side Actuated	SPST-NO	8.3 mm	5.8 mm	Through Hole, Right Angle
