IGC07T120T8LX1SA2

Unknown

Infineon Technologies

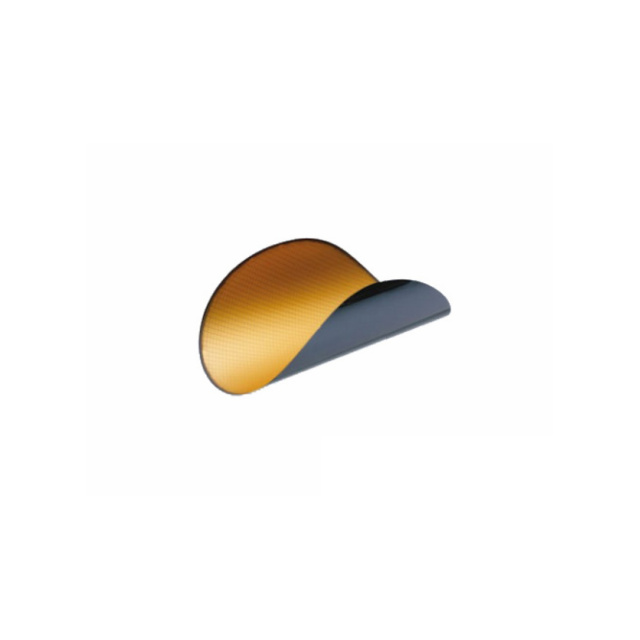

IGBT TRENCH FIELD STOP 1200V DIE

Search across all available documentation for this part.

Unknown

Infineon Technologies

IGBT TRENCH FIELD STOP 1200V DIE

Technical Specifications

Parameters and characteristics for this part

Specification	IGC07T120T8LX1SA2

Current - Collector Pulsed (Icm)	12 A
IGBT Type	Trench Field Stop
Mounting Type	Surface Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Die
Supplier Device Package	Die
Vce(on) (Max) @ Vge, Ic	2.02 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Current - Collector Pulsed (Icm)	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Mounting Type	Package / Case
Infineon Technologies IGC07T120T8LX1SA2	1200 V	2.02 V	12 A	Die	-40 C	175 °C	Trench Field Stop	Surface Mount	Die

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

The TRENCHSTOP™ IGBT combines the unique TRENCHSTOP™ and Fieldstop technology and is a benchmark in the industry.
