842-010-542-212
ActiveEDAC Inc.

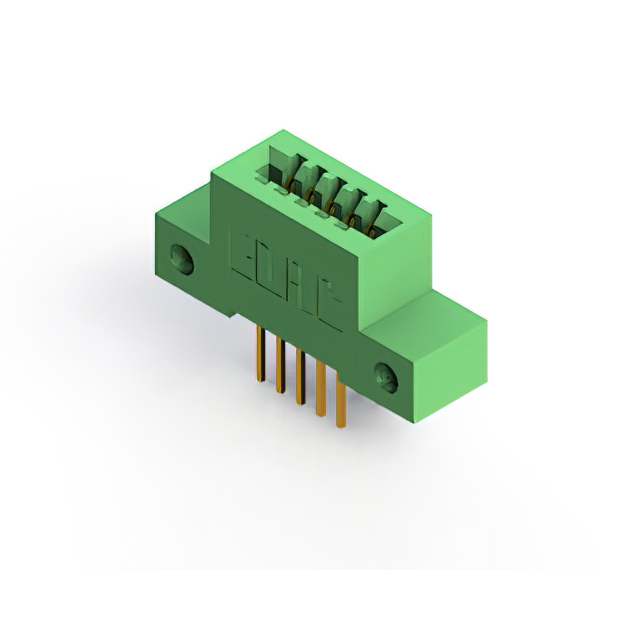

CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-010-542-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-010-542-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
842-010 Series
...
| Part | Number of Positions/Bay/Row [custom] | Termination | Material - Insulation | Number of Rows | Color | Termination Rows | Mounting Type | Card Type | Flange Feature | Contact Finish | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Read Out | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 | Solder | Diallyl Phthalate (DAP) | 1 | Green | 1 | Through Hole | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | 10 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 5 | Solder | Diallyl Phthalate (DAP) | 2 | Green | 2 | Through Hole | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " |
EDAC Inc. | 10 | Solder | Diallyl Phthalate (DAP) | 1 | Green | 1 | Through Hole | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | 10 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 5 | Solder | Diallyl Phthalate (DAP) | 2 | Green | 2 | Through Hole | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " |
EDAC Inc. | 5 | Solder | Diallyl Phthalate (DAP) | 2 | Green | 2 | Through Hole Right Angle | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 10 | Solder | Diallyl Phthalate (DAP) | 1 | Green | 1 | Through Hole | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | 10 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " |
EDAC Inc. | 5 | Solder | Diallyl Phthalate (DAP) | 2 | Green | 2 | Through Hole Right Angle | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in |
EDAC Inc. | 10 | Wire Wrap | Diallyl Phthalate (DAP) | 1 | Green | 1 | Through Hole | Non Specified - Single Edge | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | 10 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 5 | Wire Wrap | Diallyl Phthalate (DAP) | 2 | Green | 2 | Through Hole | Non Specified - Dual Edge | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 5 | Wire Wrap | Diallyl Phthalate (DAP) | 2 | Green | 2 | Through Hole | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | Gold | Cantilever | 125 °C | -40 °C | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 48.08 | |
Description
General part information
842-010 Series
10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
