NJU72501MG2-TE1
ActiveNisshinbo Micro Devices Inc
IC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJU72501MG2-TE1
ActiveNisshinbo Micro Devices Inc
IC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJU72501MG2-TE1 |
|---|---|
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1-Channel (Mono) |

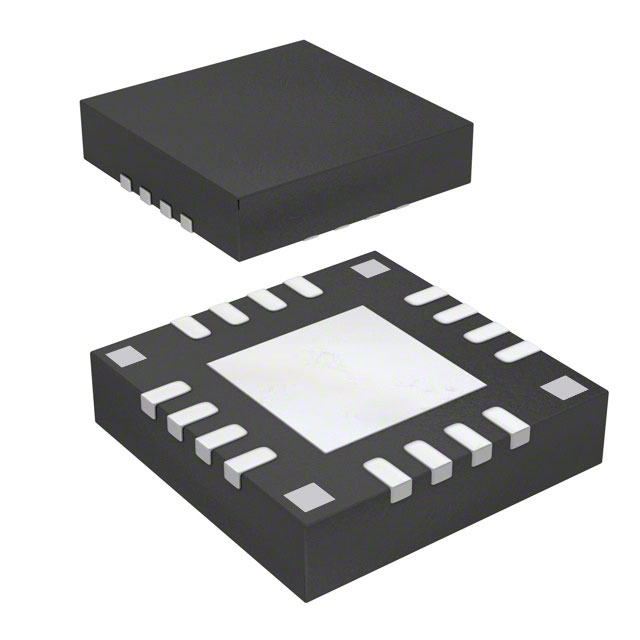

| Package / Case | 16-XFQFN Exposed Pad |
| Supplier Device Package | 16-EQFN (2.3x2.3) |
| Type | Class AB |
| Voltage - Supply [Max] | 3.4 V, 5 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.76 | |
| Cut Tape (CT) | 1 | $ 1.67 | ||
| 10 | $ 1.50 | |||
| 25 | $ 1.41 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.13 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.82 | |||
| Digi-Reel® | 1 | $ 1.67 | ||
| 10 | $ 1.50 | |||
| 25 | $ 1.41 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.13 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.82 | |||
| Tape & Reel (TR) | 3000 | $ 0.76 | ||
| 6000 | $ 0.74 | |||
Description
General part information
NJU72501 Series
IC
Documents
Technical documentation and resources
