7620-5002 PL
Active3M (TC)

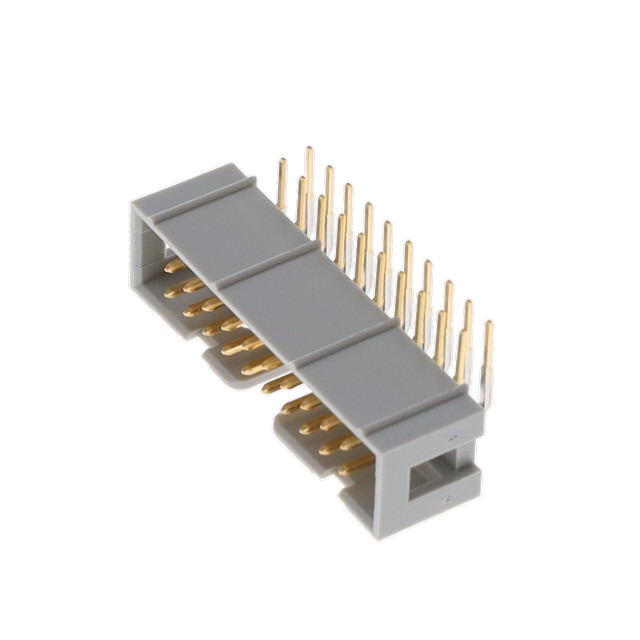

HDR SOCKET LOW PROFILE 20 POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7620-5002 PL
Active3M (TC)
HDR SOCKET LOW PROFILE 20 POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7620-5002 PL |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post [x] | 0.11 in |
| Contact Length - Post [x] | 2.8 mm |
| Contact Type | Male Pin |
| Insulation Color | Gray |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.25 | |
| 10 | $ 1.96 | |||
| 100 | $ 1.75 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.25 | |||
| 5000 | $ 1.11 | |||
Description
General part information
7620 Series
Connector Header 20 position 0.100" (2.54mm)
Documents
Technical documentation and resources
