Description
General part information
305-2 Series

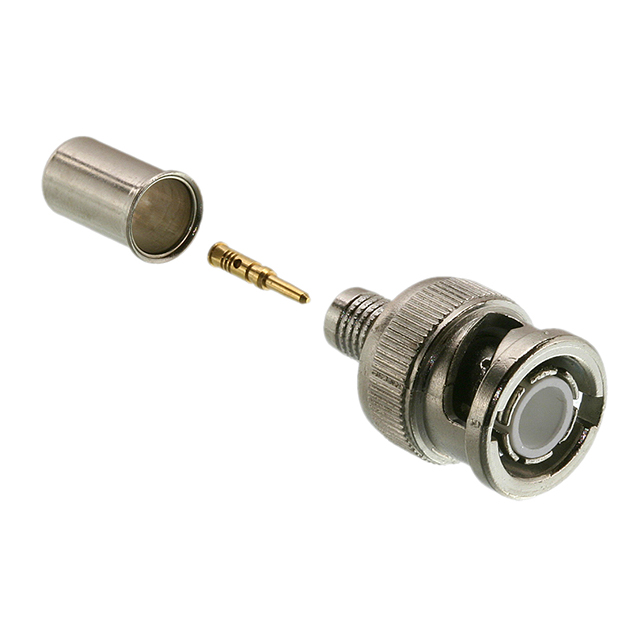

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-2TP |
|---|---|
| Body Finish | Nickel |
| Cable Group | 62, RG-59, 210, 140 |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 1 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
