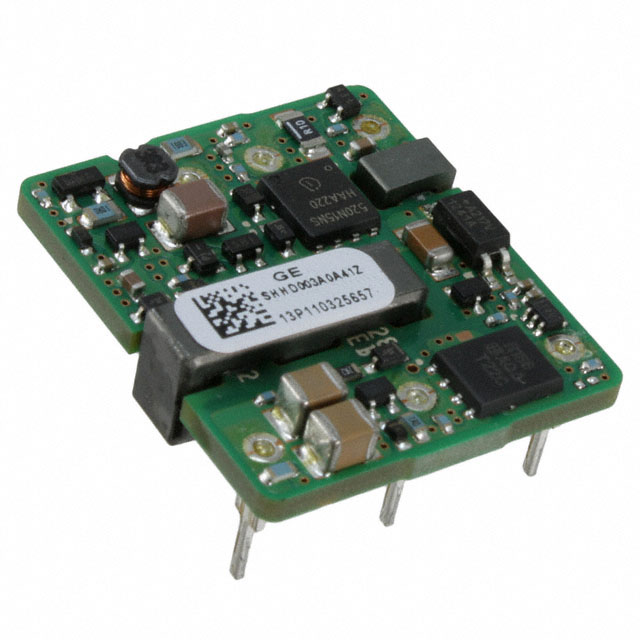

SHHD003A0A41Z
ActiveOmniOn Power™
DC DC CONVERTER 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SHHD003A0A41Z
ActiveOmniOn Power™
DC DC CONVERTER 5V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SHHD003A0A41Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 87 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [y] | 24.4 mm |
| Size / Dimension [y] | 0.96 in |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.44 | |
Description
General part information
SHHD003 Series
Isolated Module DC DC Converter 1 Output 5V 3A 18V - 75V Input
