Technical Specifications
Parameters and characteristics for this part

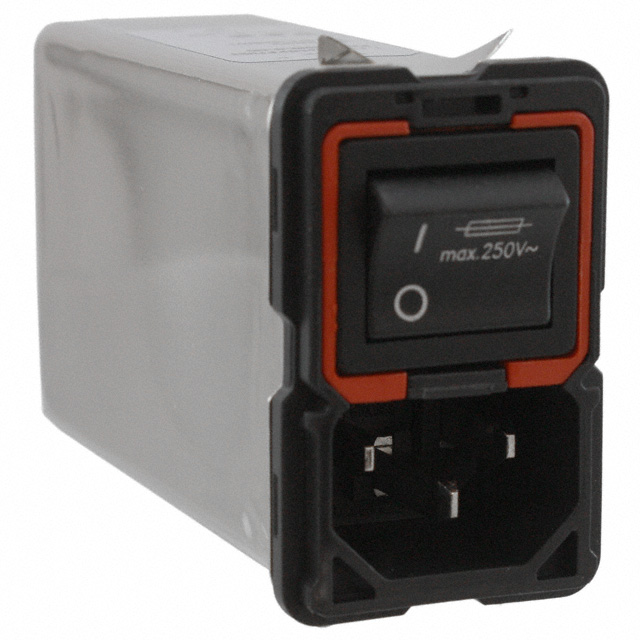

| Specification | FN9299B-6-06 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, CQC, CSA, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 6 A |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.8 mm |
| Panel Cutout Dimensions [y] | 47.1 mm |
| Panel Thickness [Max] | 2.5 mm |
| Panel Thickness [Max] | 0.098 in |
| Panel Thickness [Min] | 1 mm |
| Panel Thickness [Min] | 0.039 in |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
FN9290 Series
| Part | Features | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Features | Mounting Type | Accomodates a Fuse | Filter Type | Current Rating - Filter | Approval Agency | Ingress Protection | Termination | Connector Type | Fuse Holder, Drawer | Connector Style | Material Flammability Rating | Termination | Termination | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Front or Rear Side Mount | 47.1 mm | 28.8 mm | Switch On-Off | Flange Panel Mount | Filtered (EMI RFI) - Commercial | 10 A | CQC CSA ENEC UL | IP40 | Spring-Cage | Receptacle Male Blades - Module | Fuse Holder Twin Fused | IEC 320-C14 | UL94 V-2 | |||||||
TE Connectivity Raychem Cable Protection | Front or Rear Side Mount | 47.1 mm | 28.8 mm | Switch On-Off | Flange Panel Mount | Filtered (EMI RFI) - Commercial | 4 A | CQC CSA ENEC UL | IP40 | Quick Connect | Receptacle Male Blades - Module | Fuse Holder Twin Fused | IEC 320-C14 | UL94 V-2 | 0.25 in | 6.3 mm | |||||
TE Connectivity Raychem Cable Protection | Front or Rear Side Mount | 47.1 mm | 28.8 mm | Switch On-Off | Flange Panel Mount | Filtered (EMI RFI) - Commercial Medical | 6 A | CQC CSA ENEC UL | IP40 | Spring-Cage | Receptacle Male Blades - Module | Fuse Holder Twin Fused | IEC 320-C14 | UL94 V-2 | |||||||
TE Connectivity Raychem Cable Protection | 47.1 mm | 28.8 mm | Switch On-Off | Panel Mount Snap-In | Filtered (EMI RFI) - Commercial Medical | 6 A | CQC CSA ENEC UL | IP40 | Quick Connect | Receptacle Male Blades - Module | Fuse Holder Twin Fused | IEC 320-C14 | UL94 V-2 | 0.25 in | 6.3 mm | 2.5 mm | 1 mm | 0.098 in | 0.039 in | ||
TE Connectivity Raychem Cable Protection | Front or Rear Side Mount | 47.1 mm | 28.8 mm | Switch On-Off | Flange Panel Mount | Filtered (EMI RFI) - Commercial Medical | 4 A | CQC CSA ENEC UL | IP40 | Spring-Cage | Receptacle Male Blades - Module | Fuse Holder Twin Fused | IEC 320-C14 | UL94 V-2 | |||||||
TE Connectivity Raychem Cable Protection | Front or Rear Side Mount | 47.1 mm | 28.8 mm | Switch On-Off | Flange Panel Mount | Filtered (EMI RFI) - Commercial Medical | 4 A | CQC CSA ENEC UL | IP40 | Quick Connect | Receptacle Male Blades - Module | Fuse Holder Twin Fused | IEC 320-C14 | UL94 V-2 | 0.25 in | 6.3 mm | |||||
TE Connectivity Raychem Cable Protection | Front or Rear Side Mount | 47.1 mm | 28.8 mm | Switch On-Off | Flange Panel Mount | Filtered (EMI RFI) - Commercial | 10 A | CQC CSA ENEC UL | IP40 | Quick Connect | Receptacle Male Blades - Module | Fuse Holder Twin Fused | IEC 320-C14 | UL94 V-2 | 0.25 in | 6.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FN9290 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
