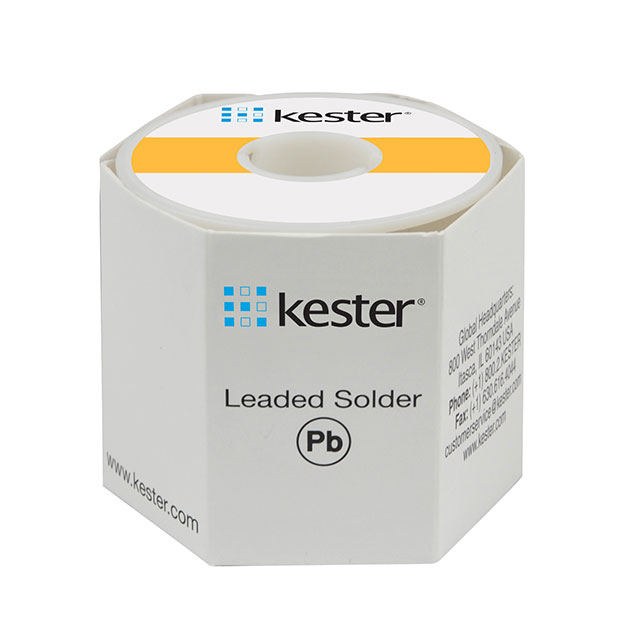

Specification	24-7340-9700

Ag Composition	1.5 %
Composition Elements	Sn, Pb, Ag
Composition Formula	Pb93.5Sn5Ag1.5
Diameter	0.02 in
Flux Type	Rosin Mildly Activated (RMA)
Form	Spool
Form Weight	1 lb
Melting Point (Max)	574 °F
Melting Point (Min)	565 °F
Process	Leaded
Sn Composition	5 %
Storage/Refrigeration Temperature (Maximum)	104 °F
Storage/Refrigeration Temperature (Minimum)	50 °F
Type	Wire Solder
Wire Gauge	25 SWG, 24 AWG

24-7340 Series

Part	Melting Point (Min)	Melting Point (Max)	Type	Composition Elements	Composition Formula	Ag Composition	Sn Composition	Diameter	Flux Type	Form Weight	Form	Wire Gauge	Process	Storage/Refrigeration Temperature (Minimum)	Storage/Refrigeration Temperature (Maximum)
Kester Solder 24-7340-9700	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.02 in	Rosin Mildly Activated (RMA)	1 lb	Spool	24 AWG 25 SWG	Leaded	50 °F	104 °F
Kester Solder 24-7340-9713	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.031 in	Rosin Mildly Activated (RMA)	1 lb	Spool	20 AWG 22 SWG	Leaded	50 °F	104 °F
Kester Solder 24-7340-9790	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.063 in	Rosin Mildly Activated (RMA)	1 lb	Spool	14 AWG 16 SWG	Leaded	50 °F	104 °F
Kester Solder 24-7340-9717	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.025 in	Rosin Mildly Activated (RMA)	1 lb	Spool	22 AWG 23 SWG	Leaded	50 °F	104 °F
Kester Solder 24-7340-0009	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.02 in	Rosin Activated (RA)	1 lb	Spool	24 AWG 25 SWG	Leaded	50 °F	104 °F
Kester Solder 24-7340-8813	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.04 in		17.64 oz	Spool	18 AWG 19 SWG	Leaded	50 °F	104 °F
Kester Solder 24-7340-0026	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.031 in	Rosin Activated (RA)	1 lb	Spool	20 AWG 22 SWG	Leaded	50 °F	104 °F
Kester Solder 24-7340-0006	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.015 in	Rosin Activated (RA)	1 lb	Spool	27 AWG 28 SWG	Leaded	50 °F	104 °F
Kester Solder 24-7340-0060	565 °F	574 °F	Wire Solder	Ag Pb Sn	Pb93.5Sn5Ag1.5	1.5 %	5 %	0.062 in	Rosin Activated (RA)	1 lb	Spool	14 AWG 16 SWG	Leaded	50 °F	104 °F
