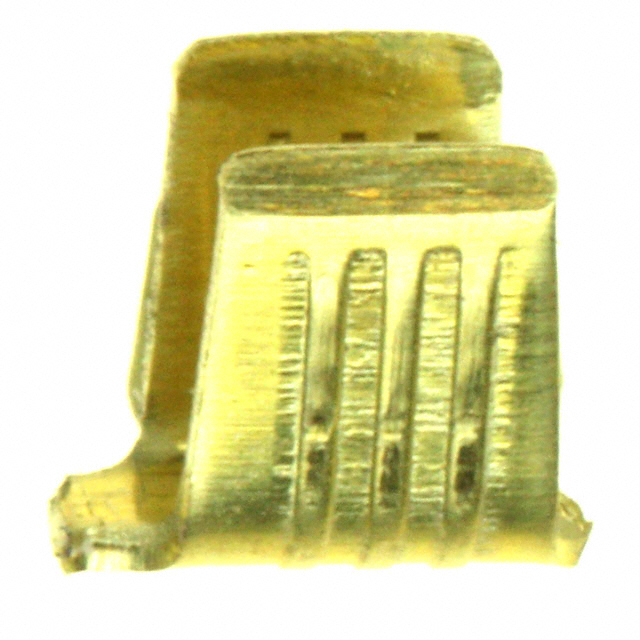

40509
ActiveTE Connectivity AMP Connectors
CONN SPLICE 3300-9000 CMA CRIMP
40509
ActiveTE Connectivity AMP Connectors
CONN SPLICE 3300-9000 CMA CRIMP
Description
General part information
4050 Series
Pigtail Splice / Thru Splice, Serrated, 3300 – 9000 CMA, Brass, 3 Serration, 3.86 mm [.152 in] Length, Reel, Open Barrel, SPLICE
Technical Specifications
Parameters and characteristics for this part
| Specification | 40509 |
|---|---|
| Features | Ridged |
| Insulation | Non-Insulated |
| Number of Wire Entries | Varies by Wire Size |
| Terminal Type | Open Band, Crimpband |
| Termination | Crimp |
| Wire Gauge (CMA) (Max) | 9000 CMA |
| Wire Gauge (CMA) (Min) | 3300 CMA |
