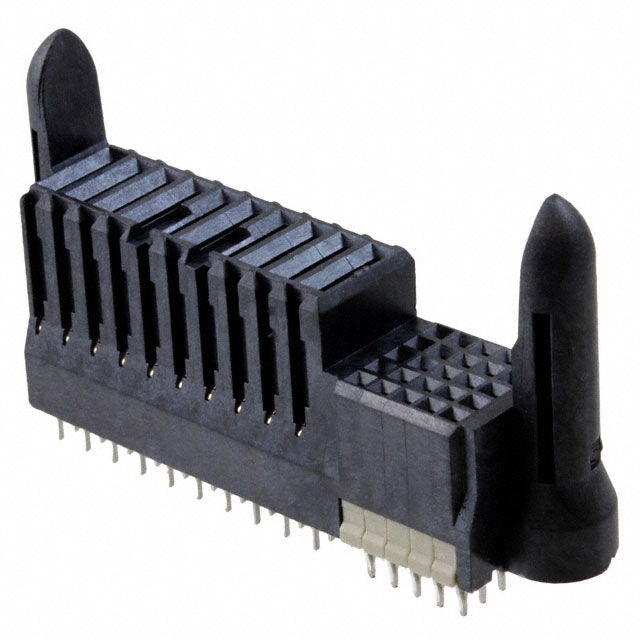

Specification	1892787-6

Color	Black
Connector Type	Receptacle, Blade Sockets, Female Sockets
Contact Finish	Gold-Palladium, Gold
Contact Finish Thickness	30 µin
Features	Guide Pin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	35
Number of Positions Loaded	All
Power Contacts (Typical)	10
Signal Contacts (Typical)	25
Termination	Press-Fit, Solder

1892787 Series

Part	Material Flammability Rating	Features	Signal Contacts (Typical)	Power Contacts (Typical)	Contact Finish	Number of Positions Loaded	Connector Type	Mounting Type	Number of Positions	Color	Contact Finish Thickness	Termination
TE Connectivity AMP Connectors 1892787-6	UL94 V-0	Guide Pin	25	10	Gold Gold-Palladium	All	Blade Sockets Female Sockets Receptacle	Through Hole	35	Black	30 µin	Press-Fit Solder

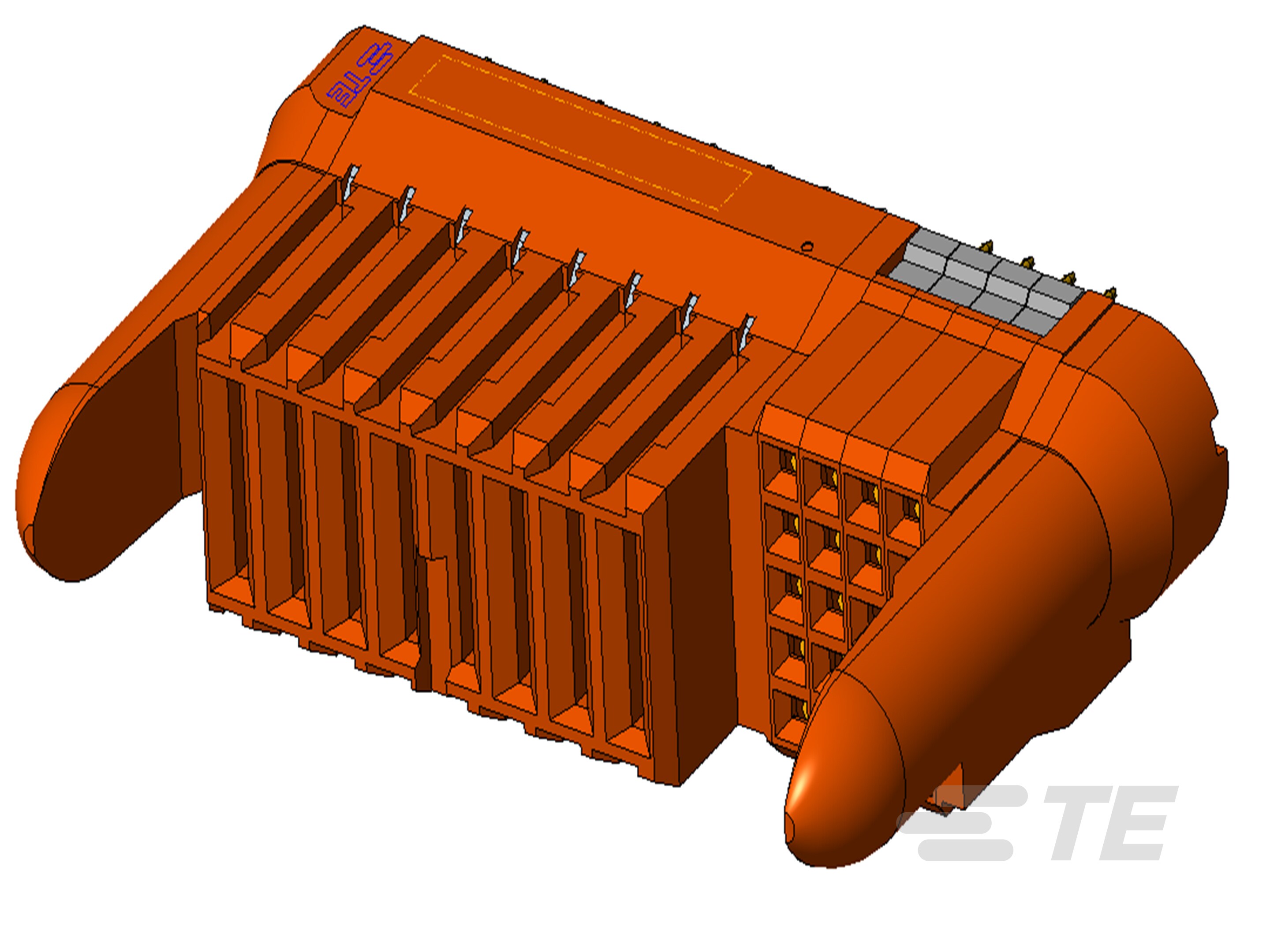

TE Connectivity AMP Connectors 1892787-9	UL94 V-0	Guide Pin	20	8	Gold Gold-Palladium	All	Blade Sockets Female Sockets Receptacle	Through Hole	28	Black	30 µin	Press-Fit Solder
