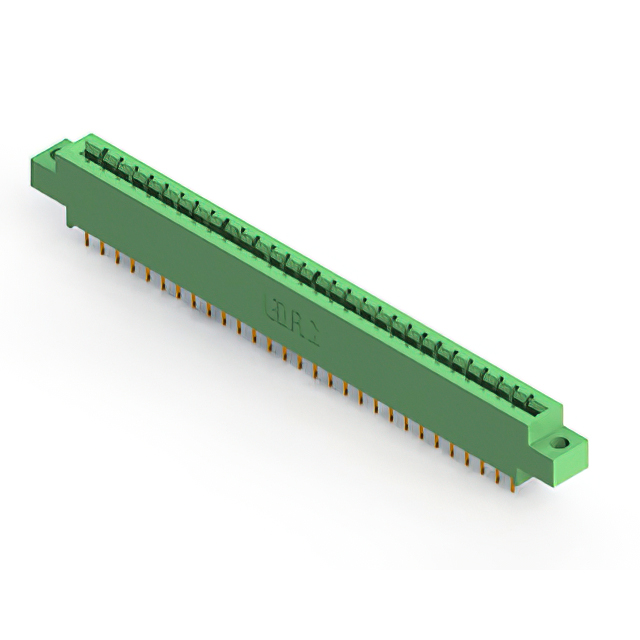

833-029-558-604
ActiveEDAC Inc.
CONN EDGE SGL FMALE 29POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-029-558-604
ActiveEDAC Inc.
CONN EDGE SGL FMALE 29POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-029-558-604 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 29 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
833-029 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row | Read Out | Color | Termination | Termination Rows | Contact Finish | Number of Positions | Contact Material | Number of Rows | Gender | Mounting Type | Material - Insulation | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Solder | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole Right Angle | Diallyl Phthalate (DAP) | Cantilever | M3 Threaded Insert Top Mount Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Wire Wrap | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Wire Wrap | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Solder | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole Right Angle | Diallyl Phthalate (DAP) | Cantilever | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in |
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Wire Wrap | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Solder | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in |
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Solder | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole Right Angle | Diallyl Phthalate (DAP) | Cantilever | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Solder Eyelet(s) | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Solder | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole Right Angle | Diallyl Phthalate (DAP) | Cantilever | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in |
EDAC Inc. | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Single | Green | Wire Wrap | 1 | Gold | 29 | Copper Alloy | 1 | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 62.26 | |
Description
General part information
833-029 Series
29 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
