Technical Specifications
Parameters and characteristics for this part
| Specification | G40H100CTFW |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 40 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |

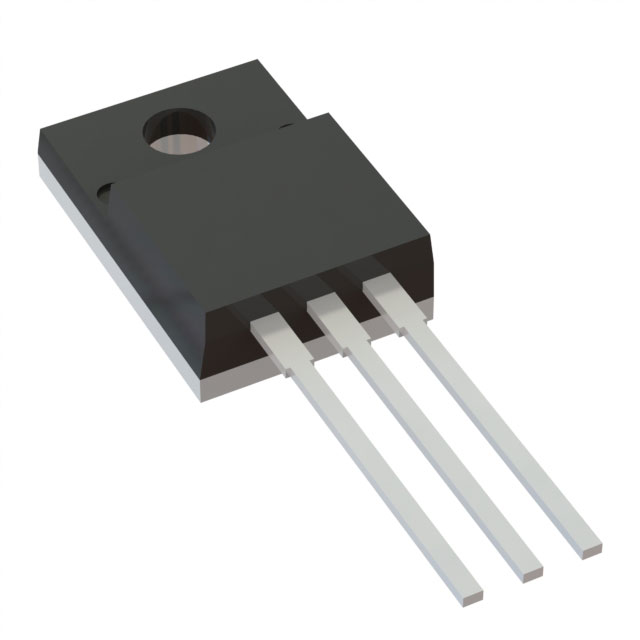

| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Qualification | AEC-Q101 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | ITO-220AB |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 790 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.09 | |
| 50 | $ 0.47 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.39 | |||
| 2000 | $ 0.38 | |||
| 5000 | $ 0.37 | |||
| 10000 | $ 0.36 | |||
Description
General part information
G40H100CTFW Series
TRENCH SCHOTTKY RECTIFIER
