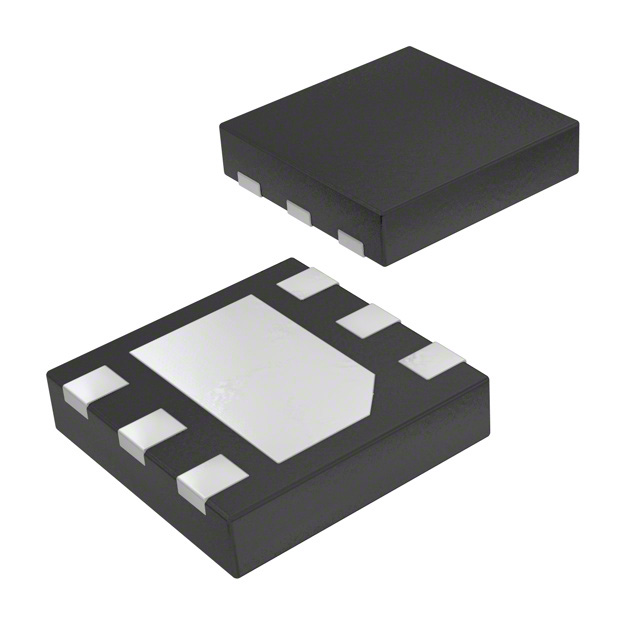

RT4503GQW

Active

Richtek USA Inc.

IC LED DRVR RGLTR PWM 1.2A 6WDFN

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC LED DRVR RGLTR PWM 1.2A 6WDFN

Technical Specifications

Parameters and characteristics for this part

IC LED DRVR RGLTR PWM 1.2A 6WDFN

Part	Type	Topology	Mounting Type	Voltage - Supply (Min) [Min]	Number of Outputs	Applications	Internal Switch(s)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Max)	Dimming	Frequency	Voltage - Output	Current - Output / Channel	Supplier Device Package
Richtek USA Inc. RT4503GQW	DC DC Regulator	Step-Up (Boost)	Surface Mount	2.5 V	1	Backlight		85 °C	-40 °C	5.5 V	PWM	550 kHz	36 V	1.2 A	6-WDFN (2x2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 1.2A (Switch) 6-WDFN (2x2)
