ActiveTE Connectivity AMP Connectors
CONN RING OVAL 18-22AWG #6 CRIMP
42037
ActiveTE Connectivity AMP Connectors
CONN RING OVAL 18-22AWG #6 CRIMP
Description
General part information
4203 Series

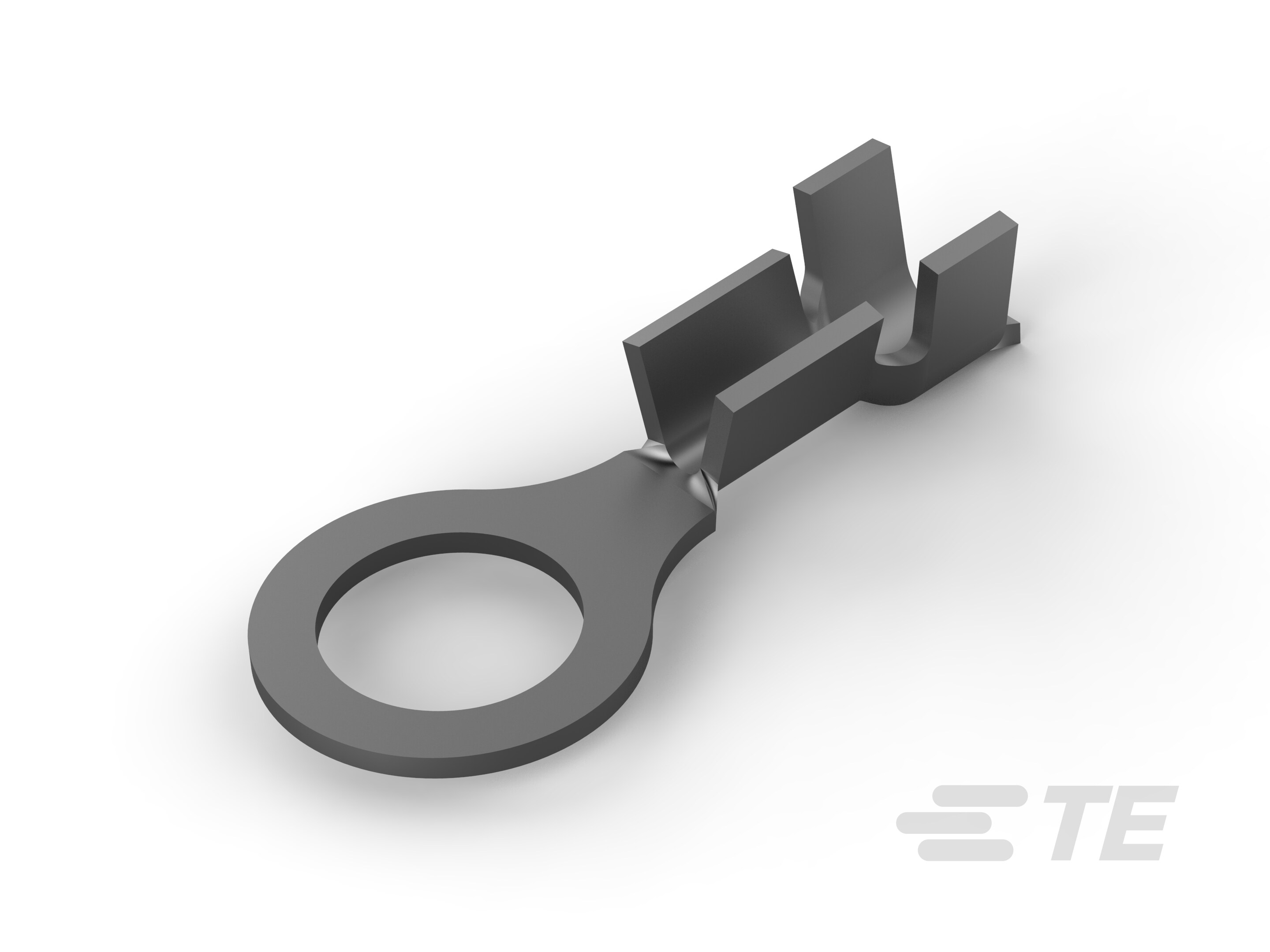

Closed Ring Tongue Terminal, 22 – 18 AWG, #6 / M3.5 Stud, 3.51 mm [.138 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 42037 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.11 in |
| Insulation Diameter (Min) | 0.08 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Oval |
| Termination | Crimp |
| Thickness | 0.02 in |
| Width - Outer Edges | 0.296 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
