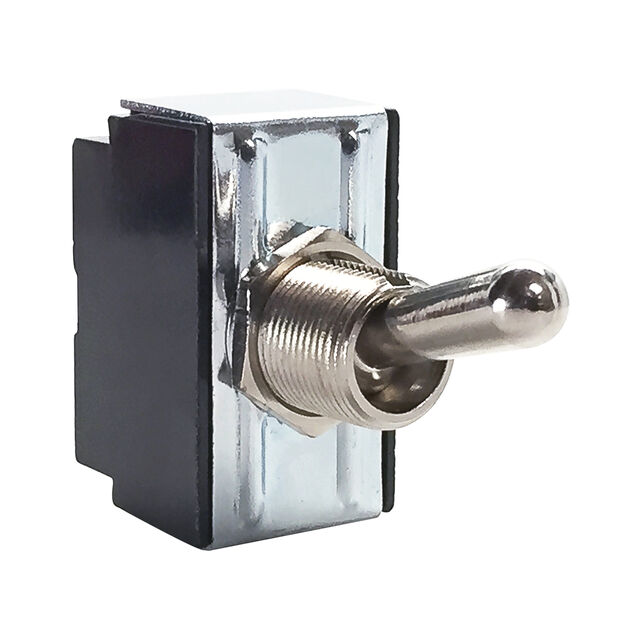

2GK721-D-3B-B

Active

Carling Technologies

SWITCH TOGGLE DPST 20A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE DPST 20A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.34

General part information

Toggle Switch DPST Panel Mount

Technical documentation and resources

Specification	2GK721-D-3B-B	2GK721 Series

Actuator Length [x]	17.45 mm	17.45 mm
Actuator Type	Standard Round	Standard Round, Paddle
Bushing Thread	15/32-32	15/32-32
Circuit	DPST	DPST
Current Rating (Amps)	20 A	20 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

Part	Circuit	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination	Bushing Thread	Voltage Rating - AC	Electrical Life	Termination Style	Switch Function	Actuator Length [x]
Carling Technologies 2GK721-D-2W-B	DPST	85 °C	20 A	Standard Round	12.7 mm	Non-Illuminated	15/32-32	125 V	50000 Cycles	Quick Connect - 0.250" (6.3mm)	On-Off
Carling Technologies 2GK721-D-4B-B/2HEX	DPST	85 °C	20 A	Paddle	12.7 mm	Non-Illuminated	15/32-32	125 V	50000 Cycles	Quick Connect - 0.250" (6.3mm)	On-Off	17.45 mm
Carling Technologies 2GK721-D-3B-B	DPST	85 °C	20 A	Standard Round	12.7 mm	Non-Illuminated	15/32-32	125 V	50000 Cycles	Quick Connect - 0.250" (6.3mm)	On-Off	17.45 mm
