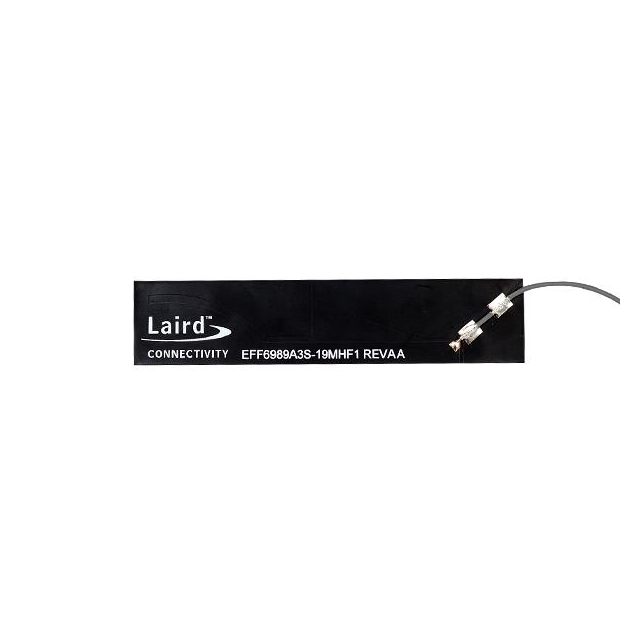

EFF6989A3S-19MH4L

Active

Ezurio LLC

ANTENNA FLEXIBLE 4.1DBI GAIN 824MHZ/894MHZ/960MHZ/1550MHZ/1690MHZ/1880MHZ/1990MHZ/2170MHZ/2500MHZ/2700MHZ/4200MHZ/6000MHZ BAG

Search across all available documentation for this part.

Active

Ezurio LLC

ANTENNA FLEXIBLE 4.1DBI GAIN 824MHZ/894MHZ/960MHZ/1550MHZ/1690MHZ/1880MHZ/1990MHZ/2170MHZ/2500MHZ/2700MHZ/4200MHZ/6000MHZ BAG

Technical Specifications

Parameters and characteristics for this part

Specification	EFF6989A3S-19MH4L

Antenna Type	PCB Trace
Applications	LTE, 5G, 4G
Features	190 mm
Features	Cable
Frequency (Center/Band)	761 MHz, 2.04 GHz, 1.45 GHz, 920 MHz, 1.62 GHz, 2.4 GHz, 1.92 GHz, 1.785 GHz, 2.6 GHz, 3.75 GHz, 859 MHz, 5.45 GHz
Frequency Group	Wide Band
Frequency Range [Max]	2.5 GHz, 4.2 GHz, 960 MHz, 1550 MHz, 1.88 GHz, 1.99 GHz, 2.7 GHz, 1.69 GHz, 2.17 GHz, 824 MHz, 894 MHz, 6 GHz
Frequency Range [Min]	1.91 GHz, 880 MHz, 1.69 GHz, 2.3 GHz, 698 MHz, 1.85 GHz, 3.3 GHz, 1550 MHz, 824 MHz, 1.35 GHz, 4.9 GHz, 2.5 GHz
Gain	1.4 dBi, 4.5 dBi, 3.3 dBi, 2.7 dBi, 4.1 dBi, 0.9 dBi, 4.2 dBi, 3.9 dBi, 3.7 dBi, 4 dBi, 3.5 dBi
Height (Max) [Max]	0.2 mm
Height (Max) [Max]	0.008 in
Mounting Type	Adhesive
Number of Bands	12
Power - Max [Max]	5 W
RF Family/Standard	Cellular
Termination	IPEX MHF4L
VSWR	2, 2.5, 2.2

Part	Gain	Frequency (Center/Band)	Applications	VSWR	Antenna Type	Mounting Type	Frequency Group	Termination	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Number of Bands	Features	Features	Power - Max [Max]	Height (Max) [Max]	Height (Max) [Max]
Ezurio LLC EFF6989A3S-19MH4L	0.9 dBi 1.4 dBi 2.7 dBi 3.3 dBi 3.5 dBi 3.7 dBi 3.9 dBi 4 dBi 4.1 dBi 4.2 dBi 4.5 dBi	1.45 GHz 1.62 GHz 1.785 GHz 1.92 GHz 2.04 GHz 2.4 GHz 2.6 GHz 3.75 GHz 5.45 GHz 761 MHz 859 MHz 920 MHz	4G 5G LTE	2 2.2 2.5	PCB Trace	Adhesive	Wide Band	IPEX MHF4L	1.69 GHz 1.88 GHz 1.99 GHz 2.17 GHz 2.5 GHz 2.7 GHz 4.2 GHz 6 GHz 824 MHz 894 MHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz 1550 MHz	Cellular	12	190 mm	Cable	5 W	0.2 mm	0.008 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.66
Digikey	Bulk	1	$ 3.01

General part information

RF ANTENNA 4G, 5G, LTE PCB Trace IPEX MHF4L Adhesive
