917688-9
ActiveTE Connectivity AMP Connectors

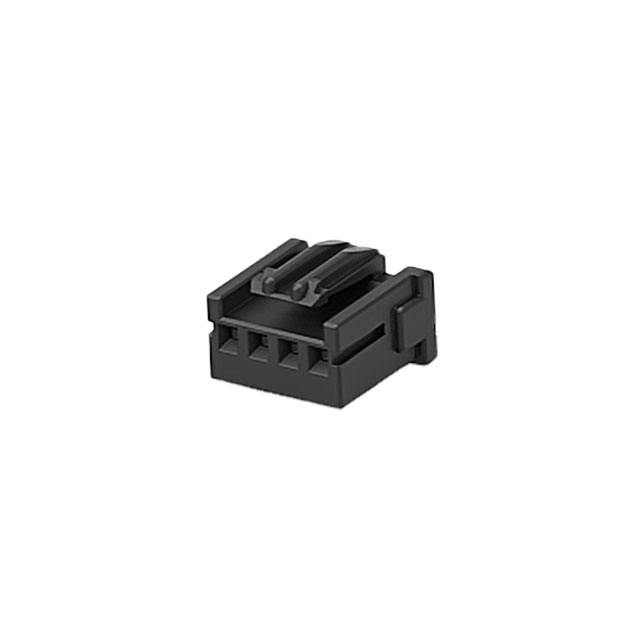

CONN PLUG HSG 4POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
917688-9
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 4POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 917688-9 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
917688 Series
CONN PLUG HSG 4POS 2.50MM
| Part | Fastening Type | Contact Termination | Insulation Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Note | Mounting Type | Number of Positions | Connector Type | Number of Rows | Contact Type | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 917688-9 | Locking Ramp | Crimp | Polyamide (PA66), Nylon 6/6 | Black | -30 ░C | 105 ░C | Contacts Not Included | Free Hanging (In-Line) | 4 | Plug | 1 | Female Socket | 0.098 in | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 4800 | $ 0.17 | |
Description
General part information
917688 Series
4 Rectangular Connectors - Housings Plug Black 0.098" (2.50mm)
